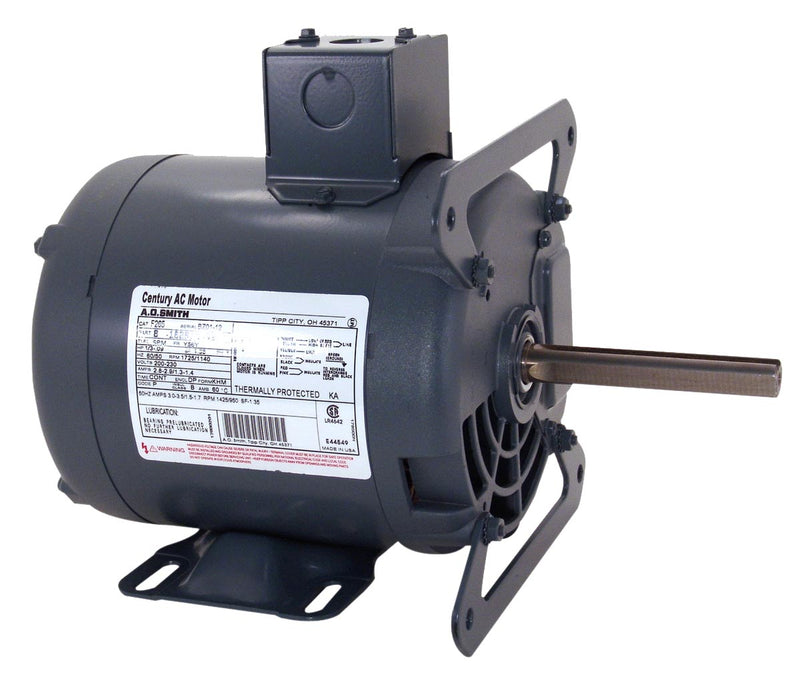

Century AO Smith F265 Oven Motor, 1/3 HP, Split-Phase, 1800, 1200 RPM, 200-230V, 56Y Frame
Century AO Smith F265 Oven Motor, 1/3 HP, Split-Phase, 1800, 1200 RPM, 200-230V, 56Y Frame

Century AO Smith F265 Oven Motor, 1/3 HP, Split-Phase, 1800, 1200 RPM, 200-230V, 56Y Frame

CenturySKU: c2090548
MPN : F265
Weight : 15.0 lb

filler
Price:
$635.41 $774.89

Availability : Usually Ships in 3-5 Business Days
  • Features: 60 degree C ambient, Eared bracket, Removable rigid base, 50-60 Hz

Item: Repair Parts, Motor Type: Split-Phaselit Phase, HP: 1/3, Nameplate RPM: 1800, 1200, Voltage: 200-230, Frame: 56Y, Enclosure: Open, Rotation: CW/CCW, Hz: 50, 60, Phase: 1, Speeds: 2, Service Factor: 1.35, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.3, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemRepair Parts
Motor TypeSplit-Phaselit Phase
HP1/3
Nameplate RPM1800, 1200
Voltage200-230
Frame56Y
EnclosureOpen
RotationCW/CCW
Hz50, 60
Phase1
Speeds2
Service Factor1.35
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim12.3
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
