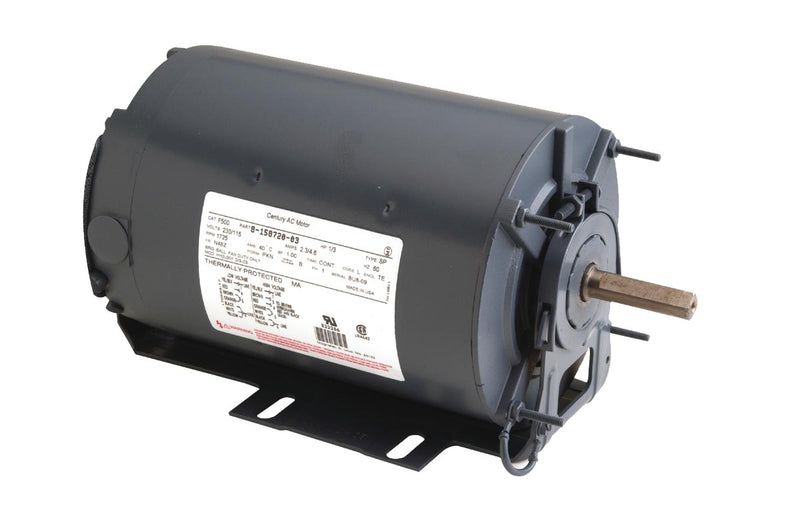

Century AO Smith F344V1 Split-Phase Resilient Motor, 1/3 HP, Split-Phase, 3450 RPM, 115, 230V, 48Z Frame

CenturySKU: c2090450
MPN : F344V1
Weight : 15.0 lb

filler

Price:
$190.74 $232.61

Availability : Usually Ships in 3-5 Business Days
  • Features: Extended thru-bolts shaft end

Item: Direct Drive Blower Motor, Motor Type: Split-Phaselit Phase, HP: 1/3, Nameplate RPM: 3450, Voltage: 115/230, Frame: 48Z, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.35, Insulation Class: B, Bearings: Ball, Base: Resilient, Shaft Type: Flat, Shaft Number: 1, Shaft Length: 2.25", Shaft Height: 3", Shaft Dia.: 0.5", "C" Dim: 10.3, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemDirect Drive Blower Motor
Motor TypeSplit-Phaselit Phase
HP1/3
Nameplate RPM3450
Voltage115/230
Frame48Z
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.35
Insulation ClassB
BearingsBall
BaseResilient
Shaft TypeFlat
Shaft Number1
Shaft Length2.25"
Shaft Height3"
Shaft Dia.0.5"
"C" Dim10.3
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
