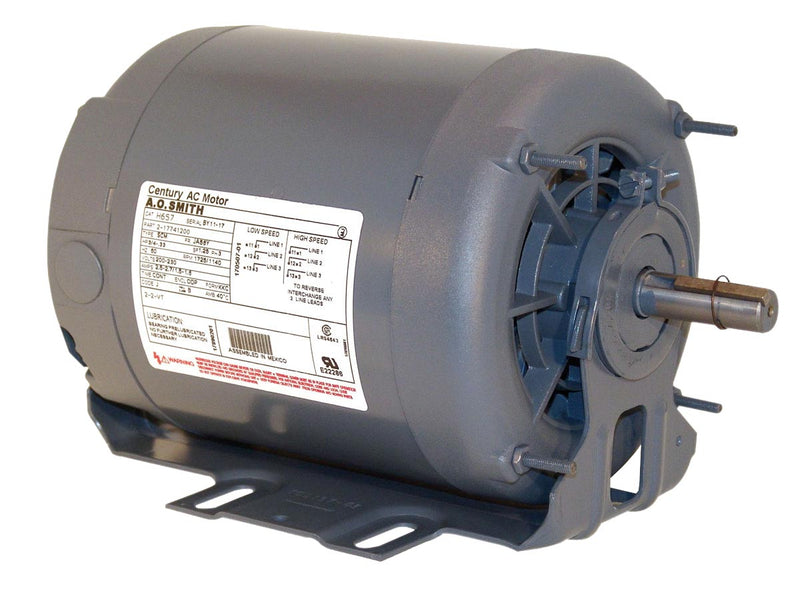

Century AO Smith F391 Split-Phase Resilient Motor, 1/2, 1/4 HP, Split-Phase, 1725, 1140 RPM, 115V, 56 Frame, Replaced w/ Century F391V1

CenturySKU: c2090481
MPN : F391
Weight : 15.0 lb
filler

Price:
$259.83 $316.87

Availability : Usually Ships in 3-5 Business Days
  • Features: Extended thru-bolts shaft end

Item: Direct Drive Blower Motor, Motor Type: Split-Phaselit Phase, HP: 1/2, 1/4, Nameplate RPM: 1725, 1140, Voltage: 115, Frame: 56, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 2, Service Factor: 1.25, Insulation Class: B, Bearings: Ball, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.4, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemDirect Drive Blower Motor
Motor TypeSplit-Phaselit Phase
HP1/2, 1/4
Nameplate RPM1725, 1140
Voltage115
Frame56
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds2
Service Factor1.25
Insulation ClassB
BearingsBall
BaseResilient
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.4
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
