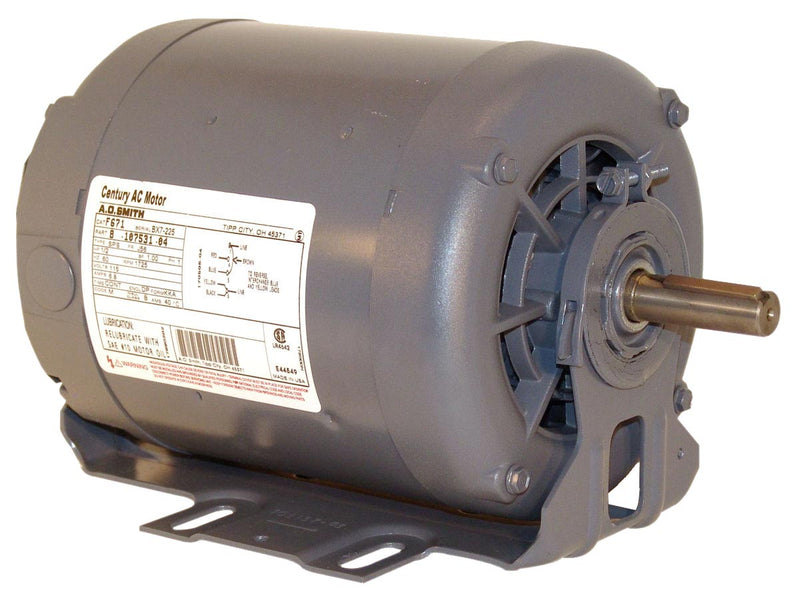

Century AO Smith F681 Split-Phase Resilient Motor, 3/4 HP, Split-Phase, 1725 RPM, 115, 230V, 56 Frame, Replaced w/ Century F681V1
Availability : Usually Ships in 3-5 Business Days
Item: Direct Drive Blower Motor, Motor Type: Split-Phaselit Phase, HP: 3/4, Nameplate RPM: 1725, Voltage: 115/230, Frame: 56, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.25, Insulation Class: B, Bearings: Sleeve, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.4, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.
| Item | Direct Drive Blower Motor |
| Motor Type | Split-Phaselit Phase |
| HP | 3/4 |
| Nameplate RPM | 1725 |
| Voltage | 115/230 |
| Frame | 56 |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.25 |
| Insulation Class | B |
| Bearings | Sleeve |
| Base | Resilient |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.625" |
| "C" Dim | 11.4 |
| Protection | Auto |
| Thermal Protection | Yes |
| Cooling | Ambient |
