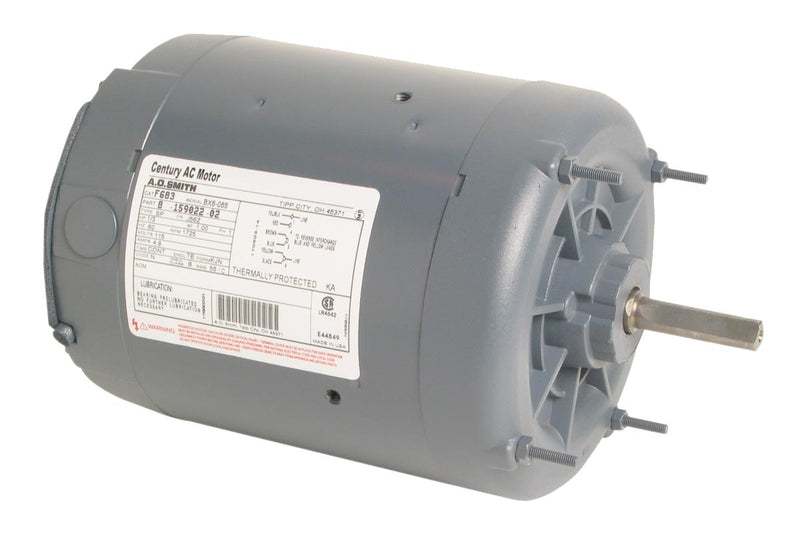

Century AO Smith F684 Direct Drive Barn Fan Motor, 1/3 HP, Split-Phase, 1800, 900 RPM, 115V, 56Y Frame

CenturySKU: c2090794
MPN : F684
Weight : 15.0 lb

filler

Price:
$380.41 $463.91

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: Direct Drive Blower Motor, Motor Type: Split-Phaselit Phase, HP: 1/3, Nameplate RPM: 1800, 900, Voltage: 115, Frame: 56Y, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 2, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2", Shaft Dia.: 0.5", "C" Dim: 11.12, Protection: Auto, Thermal Protection: Yes, Cooling: Air Over.

ItemDirect Drive Blower Motor
Motor TypeSplit-Phaselit Phase
HP1/3
Nameplate RPM1800, 900
Voltage115
Frame56Y
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds2
Service Factor1
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length2"
Shaft Dia.0.5"
"C" Dim11.12
ProtectionAuto
Thermal ProtectionYes
CoolingAir Over
