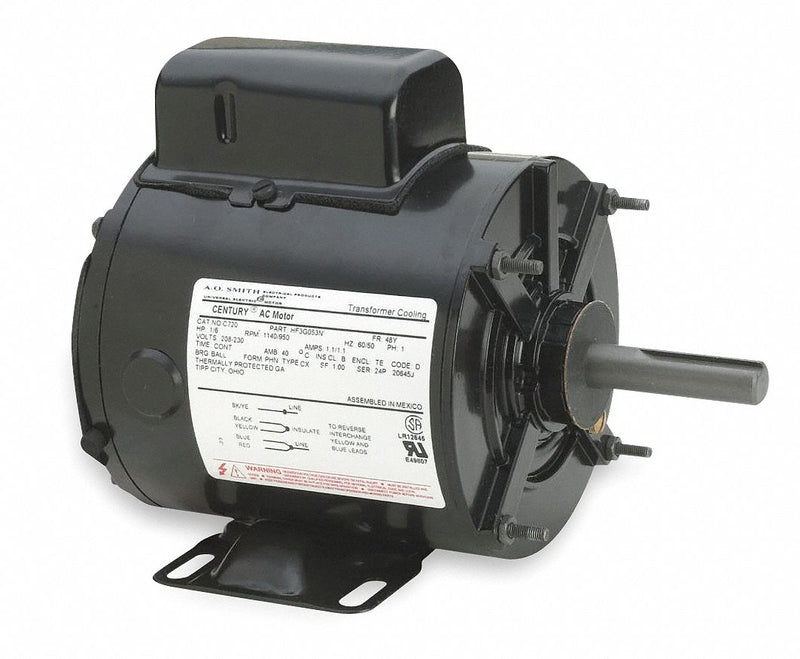

This CENTURY transformer cooling fan motor is specifically designed for use on outdoor transformer cooling fans.
| Item | Transformer Cooling Fan Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Transformer Cooling Fan |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/3 |
| Nameplate RPM | 1075 |
| Voltage | 115/200-230 |
| Full Load Amps | 6.4/3.6-3.1 |
| Hz | 60/50 |
| Phase | 1 |
| Frame | 48Y |
| Motor Service Factor | 1.5 |
| Ambient Temperature | 65 Degrees C |
| Max. Ambient Temp. | 65 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Body Dia. | 5 5/8 in |
| Length Less Shaft | 7 3/4 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 in |
| Bolt Circle Dia. | 5 1/8 in |
| Standards | CSA Certified (LR43341), UL Recognized (E46412) |
| Includes | Capacitor |
| Manufacturers Warranty Length | 1 yr |
| Voltage Compatibility | 115/200-230, 115/208-230, 115/230, 120/240, 200, 200-230, 208, 230, 240 |
