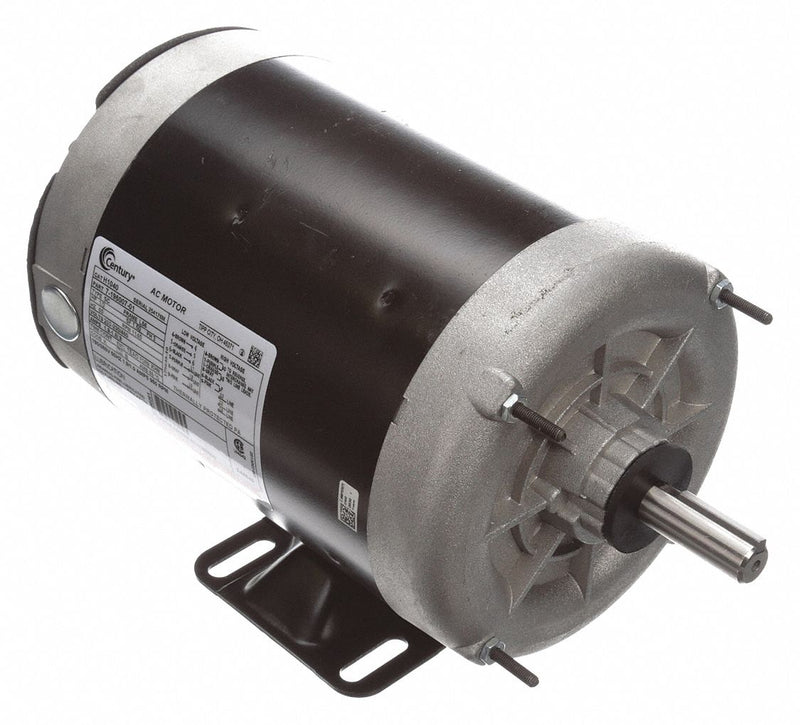

This CENTURY transformer cooling fan motor is specifically designed for use on outdoor transformer cooling fans.
| Item | Transformer Cooling Fan Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Transformer Cooling Fan |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/3 |
| Nameplate RPM | 1140 |
| Voltage | 200-230/460 |
| Full Load Amps | 1.9-1.8/0.09 |
| Hz | 60/50 |
| Phase | 3 |
| Frame | 56 |
| Motor Service Factor | 1.5 |
| Ambient Temperature | 65 Degrees C |
| Max. Ambient Temp. | 65 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Body Dia. | 6 1/2 in |
| Length Less Shaft | 10 5/16 in |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Bolt Circle Dia. | 5 13/16 in |
| Standards | CSA Certified (LR43341), UL Recognized (E46412) |
| Includes | 190/380 V @ 50hz |
| Voltage Compatibility | 200, 200-230, 200-230/440, 200-230/460, 208, 208-230/460, 220/460, 230, 230/460, 240, 460 |
