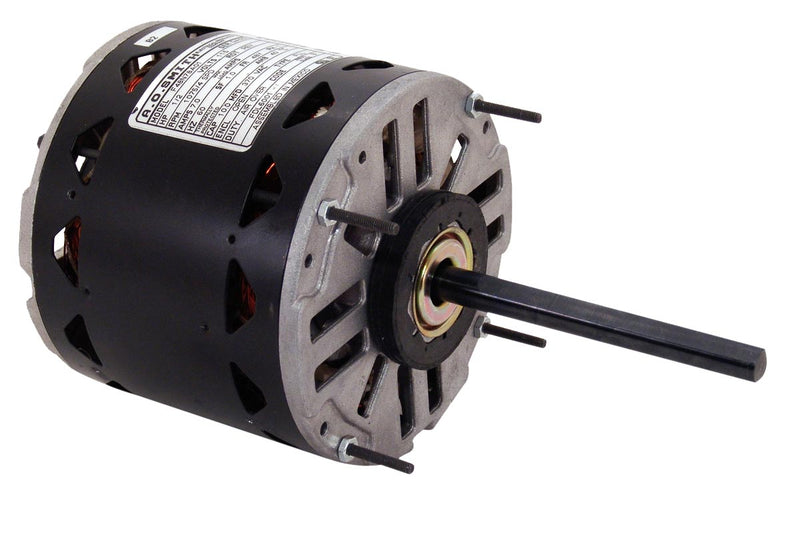

Century AO Smith FD6000 Multi-HP Fan Motor, 1/2, 1/3, 1/4, 1/5, 1/6 HP, PSC, 1075 RPM, 208-230V

CenturySKU: c2090572
MPN : FD6000
Weight : 15.0 lb

filler

Price:
$147.34 $179.69

Availability : Usually Ships in 3-5 Business Days
  • Features: Multi-HP, Rheem mounting holes, Extended thru-bolts, 40 degree C ambient, Capacitor not included

Item: Condenser Fan Motor, Motor Type: PSC, HP: 1/2, 1/3, 1/4, 1/5, 1/6, Nameplate RPM: 1075, Voltage: 208-230, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Sleeve, Shaft Number: 1, Shaft Length: 5", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 10M, 5M 370V.

ItemCondenser Fan Motor
Motor TypePSC
HP1/2, 1/3, 1/4, 1/5, 1/6
Nameplate RPM1075
Voltage208-230
EnclosureOpen
RotationCW/CCW
Hz60
Phase1
Speeds1
BearingsSleeve
Shaft Number1
Shaft Length5"
Shaft Dia.0.5"
Thermal ProtectionYes
CoolingAir Over
Capacitor10M, 5M 370V
