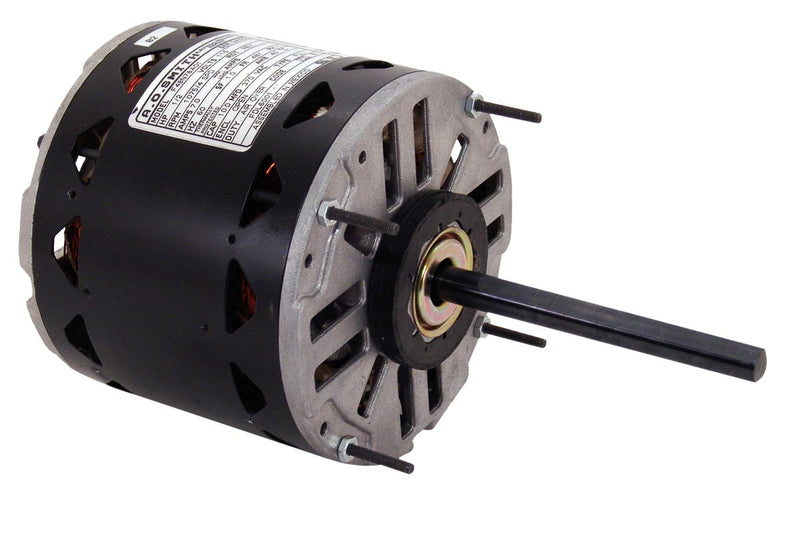

Century AO Smith FD6001 Multi-HP Fan Motor, 3/4, 1/2, 1/3, 1/4, 1/5 HP, PSC, 1075 RPM, 208-230V

CenturySKU: c2090573
MPN : FD6001
Weight : 15.0 lb
filler

Price:
$165.33 $201.62

Availability : Usually Ships in 3-5 Business Days
  • Features: Multi-HP, Rheem mounting holes, Extended thru-bolts, 40 degree C ambient, Capacitor not included

Item: Condenser Fan Motor, Motor Type: PSC, HP: 3/4, 1/2, 1/3, 1/4, 1/5, Nameplate RPM: 1075, Voltage: 208-230, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Ball, Shaft Number: 1, Shaft Length: 5", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 10M, 5M 370V.

ItemCondenser Fan Motor
Motor TypePSC
HP3/4, 1/2, 1/3, 1/4, 1/5
Nameplate RPM1075
Voltage208-230
EnclosureOpen
RotationCW/CCW
Hz60
Phase1
Speeds1
BearingsBall
Shaft Number1
Shaft Length5"
Shaft Dia.0.5"
Thermal ProtectionYes
CoolingAir Over
Capacitor10M, 5M 370V
