- Features: Reversing plug, Includes mounting rings, 23" leads, 50 degree C ambient

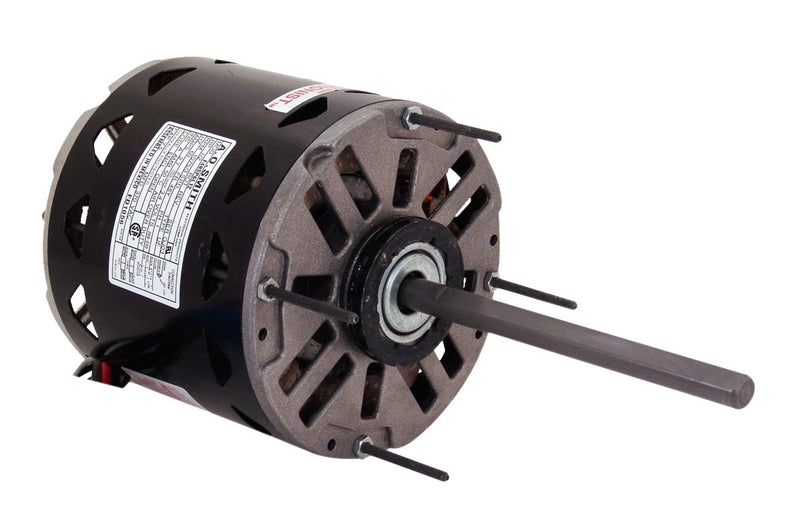

Item: Direct Drive Blower Motor, Motor Type: PSC, HP: 1/4, Nameplate RPM: 1075, Voltage: 115, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 3, Bearings: Sleeve, Shaft Number: 1, Shaft Length: 6.44", Shaft Dia.: 0.5", Ring to Ring Center: 4.67", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 7.5M 370V.
| Item | Direct Drive Blower Motor |
| Motor Type | PSC |
| HP | 1/4 |
| Nameplate RPM | 1075 |
| Voltage | 115 |
| Enclosure | Open |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 3 |
| Bearings | Sleeve |
| Shaft Number | 1 |
| Shaft Length | 6.44" |
| Shaft Dia. | 0.5" |
| Ring to Ring Center | 4.67" |
| Thermal Protection | Yes |
| Cooling | Air Over |
| Capacitor | 7.5M 370V |
