- Features: Reversing plug, Extended thru-bolts, Slinger ring on shaft end, 60 degree C ambient, Capacitor not included, 50-60 Hz

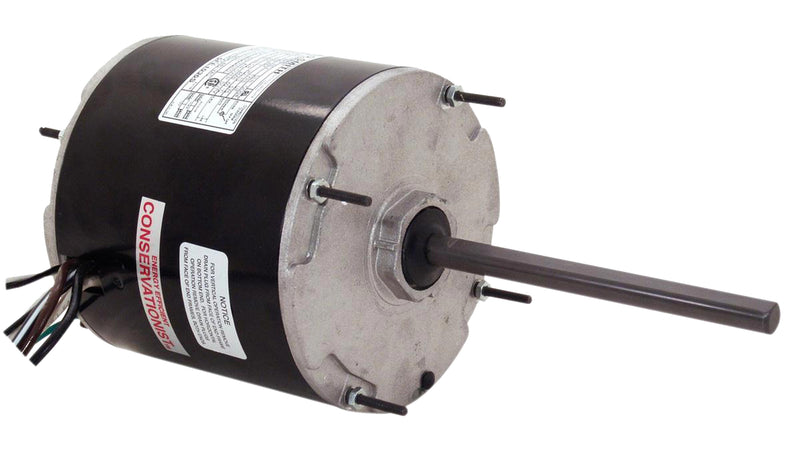

Item: Condenser Fan Motor, Motor Type: PSC, HP: 1/10, Nameplate RPM: 825, Voltage: 208-230, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 50, 60, Phase: 1, Speeds: 1, Bearings: Ball, Shaft Number: 1, Shaft Length: 6", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 5M 370V.
| Item | Condenser Fan Motor |
| Motor Type | PSC |
| HP | 1/10 |
| Nameplate RPM | 825 |
| Voltage | 208-230 |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 50, 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Ball |
| Shaft Number | 1 |
| Shaft Length | 6" |
| Shaft Dia. | 0.5" |
| Thermal Protection | Yes |
| Cooling | Air Over |
| Capacitor | 5M 370V |
