- Features: Reversing plug, Extended thru-bolts shaft end only, 60 degree C ambient, Capacitor not included, 26" leads, Includes resilient mounting rings

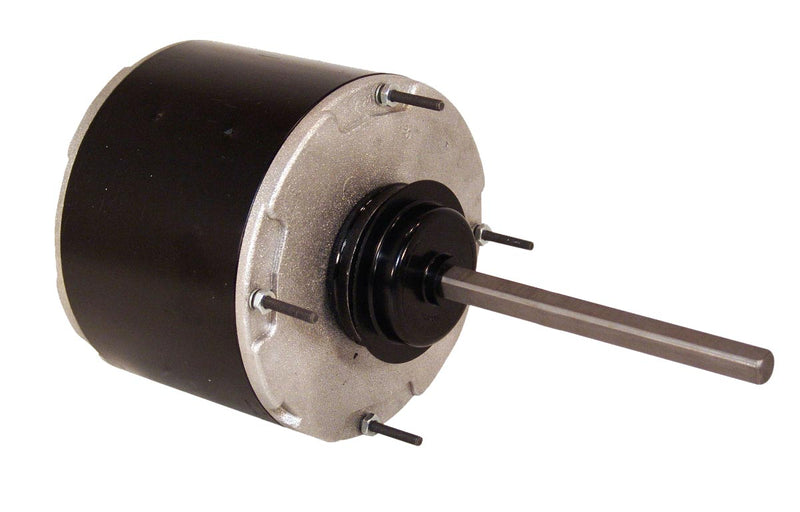

Item: Condenser Fan Motor, Motor Type: PSC, HP: 3/4, Nameplate RPM: 1075, Voltage: 208-230/460, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Ball, Shaft Number: 1, Shaft Length: 6", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 10M 370V.
| Item | Condenser Fan Motor |
| Motor Type | PSC |
| HP | 3/4 |
| Nameplate RPM | 1075 |
| Voltage | 208-230/460 |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Ball |
| Shaft Number | 1 |
| Shaft Length | 6" |
| Shaft Dia. | 0.5" |
| Thermal Protection | Yes |
| Cooling | Air Over |
| Capacitor | 10M 370V |
