Availability : Usually Ships in 3-5 Business Days
- Features: Extended thru-bolts, 70 degree C ambient, Capacitor not included, 48" leads, Four mounting holes in shell

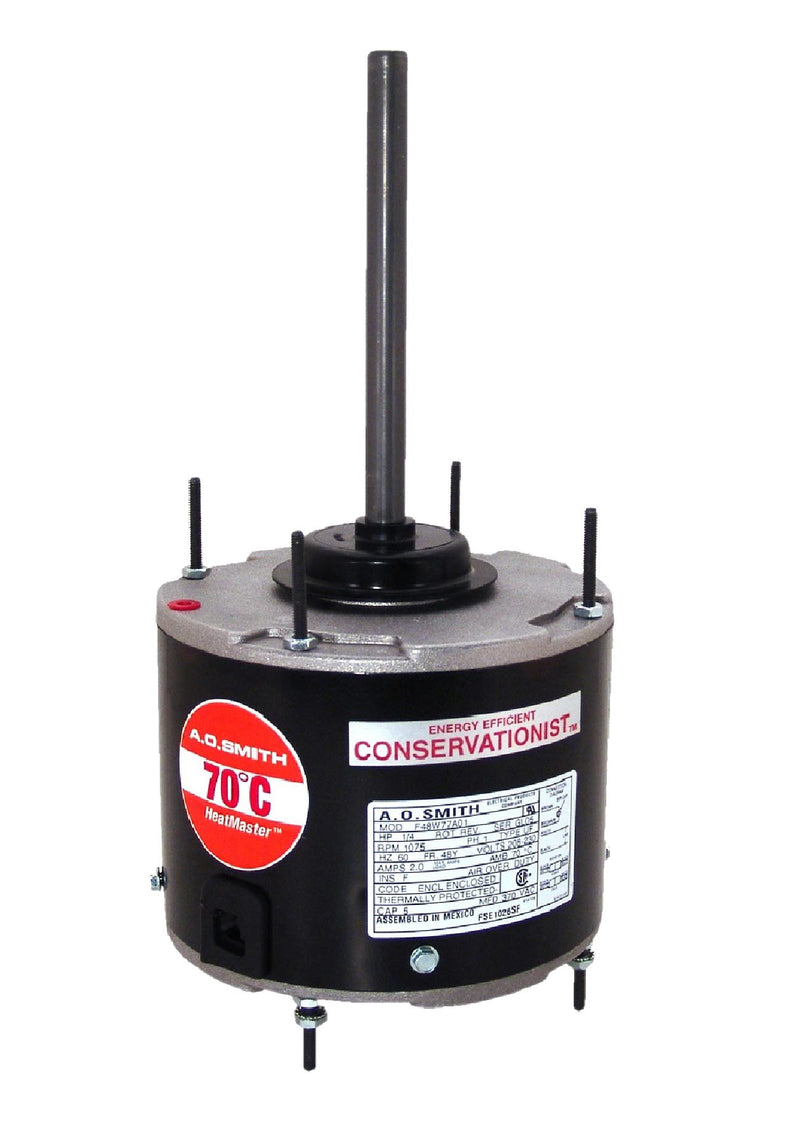

Item: Condenser Fan Motor, Motor Type: PSC, HP: 1/3, Nameplate RPM: 825, Voltage: 208-230, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Sleeve, Shaft Number: 1, Shaft Length: 6.5", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 7.5M 370V.
Item | Condenser Fan Motor |
Motor Type | PSC |
HP | 1/3 |
Nameplate RPM | 825 |
Voltage | 208-230 |
Enclosure | Totally Enclosed |
Rotation | CW/CCW |
Hz | 60 |
Phase | 1 |
Speeds | 1 |
Bearings | Sleeve |
Shaft Number | 1 |
Shaft Length | 6.5" |
Shaft Dia. | 0.5" |
Thermal Protection | Yes |
Cooling | Air Over |
Capacitor | 7.5M 370V |
