- Features: Extended thru-bolts, 70 degree C ambient, Capacitor not included, 36" leads, Four mounting holes in shell

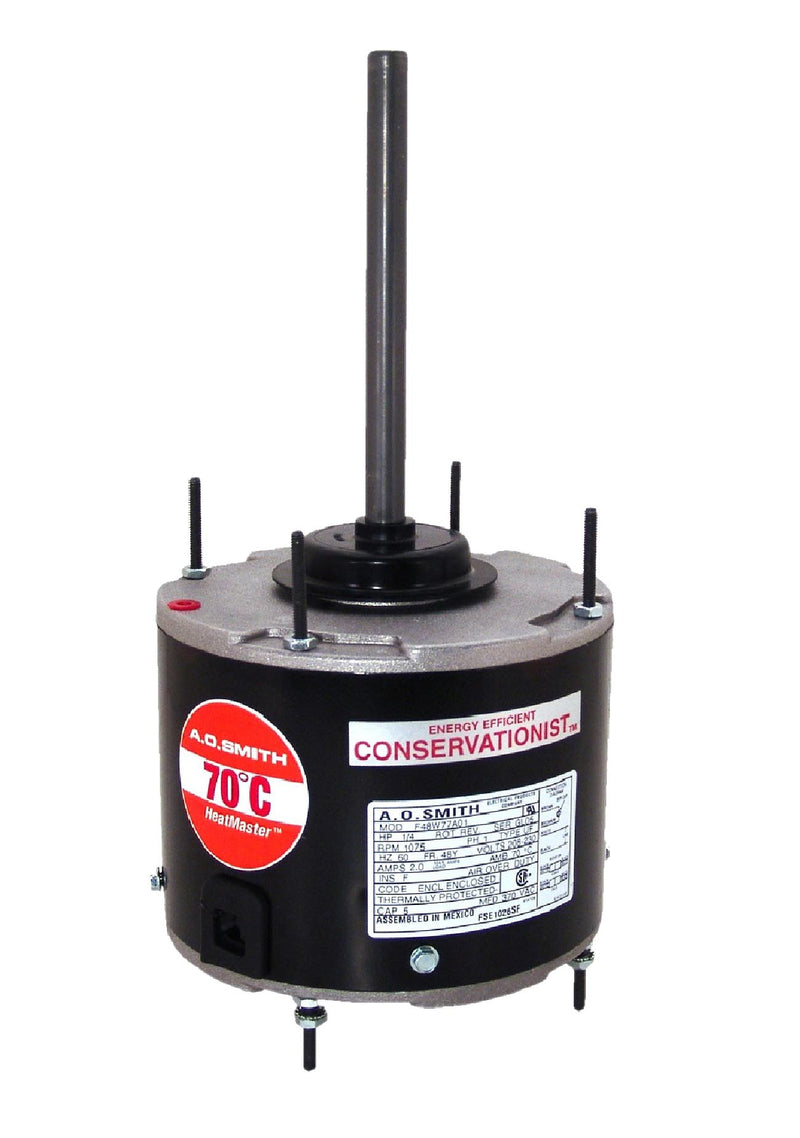

Item: Condenser Fan Motor, Motor Type: PSC, HP: 3/4, Nameplate RPM: 1075, Voltage: 208-230, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Sleeve, Shaft Number: 1, Shaft Length: 6.5", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 15M 370V.
| Item | Condenser Fan Motor |
| Motor Type | PSC |
| HP | 3/4 |
| Nameplate RPM | 1075 |
| Voltage | 208-230 |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Sleeve |
| Shaft Number | 1 |
| Shaft Length | 6.5" |
| Shaft Dia. | 0.5" |
| Thermal Protection | Yes |
| Cooling | Air Over |
| Capacitor | 15M 370V |
