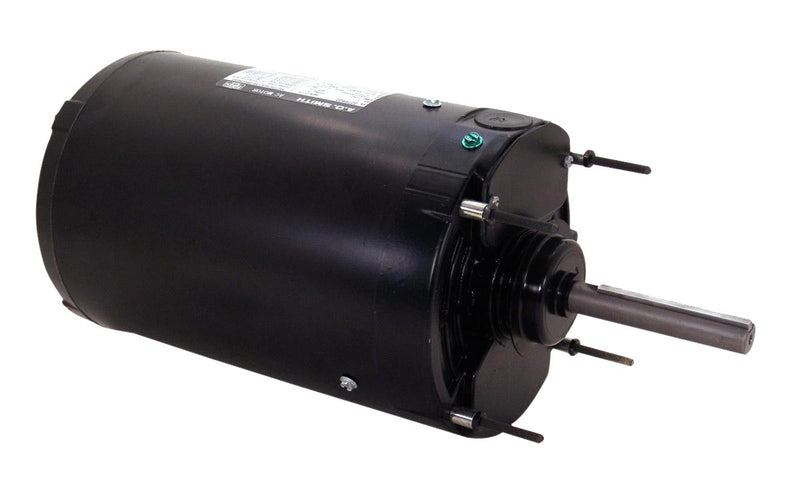

Century AO Smith FY3156 Condenser Motor, 1/2 HP, 3-Phase, 1140 RPM, 200-230, 460V

CenturySKU: c2090903
MPN : FY3156
Weight : 15.0 lb
filler

Price:
$705.21 $860.01

Availability : Usually Ships in 3-5 Business Days
  • Features: Quick connects, 60 degree C ambient, Shaft has both keyway and flat, 50-60 Hz, Thru-bolts shaft end

Item: Condenser Fan Motor, Motor Type: 3-Phase, HP: 1/2, Nameplate RPM: 1140, Voltage: 200-230/460, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 50, 60, Phase: 3, Speeds: 1, Bearings: Ball, Shaft Number: 1, Shaft Length: 4.25", Shaft Dia.: 0.625", Thermal Protection: Yes, Cooling: Air Over.

ItemCondenser Fan Motor
Motor Type3-Phase
HP1/2
Nameplate RPM1140
Voltage200-230/460
EnclosureTotally Enclosed
RotationCW/CCW
Hz50, 60
Phase3
Speeds1
BearingsBall
Shaft Number1
Shaft Length4.25"
Shaft Dia.0.625"
Thermal ProtectionYes
CoolingAir Over
