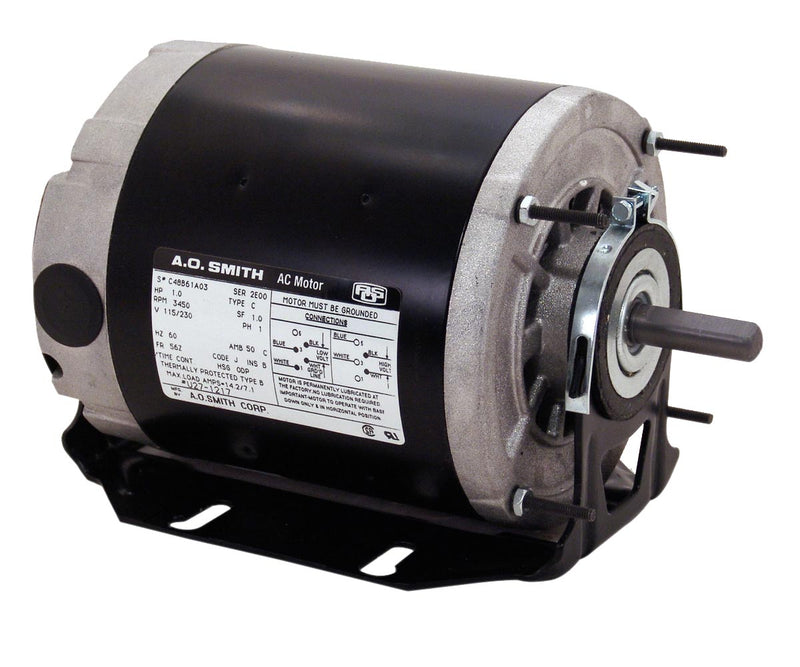

Century AO Smith GF2024D Split-Phase Resilient Motor, 1/4 HP, Split-Phase, 1725 RPM, 115, 208-230V, 48/56 Frame

CenturySKU: c2090446
MPN : GF2024D
Weight : 15.0 lb
filler

Price:
$239.06 $291.54

Availability : Usually Ships in 3-5 Business Days
  • Features: Includes 5/8" dia shaft adapter

Item: Direct Drive Blower Motor, Motor Type: Split-Phaselit Phase, HP: 1/4, Nameplate RPM: 1725, Voltage: 115/208-230, Frame: 48/56, Enclosure: Open, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.35, Insulation Class: B, Bearings: Sleeve, Base: Resilient, Shaft Type: Flat or Key, Shaft Number: 1, Shaft Length: 1.5", Shaft Height: 3", Shaft Dia.: 0.5", "C" Dim: 9.2, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemDirect Drive Blower Motor
Motor TypeSplit-Phaselit Phase
HP1/4
Nameplate RPM1725
Voltage115/208-230
Frame48/56
EnclosureOpen
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.35
Insulation ClassB
BearingsSleeve
BaseResilient
Shaft TypeFlat or Key
Shaft Number1
Shaft Length1.5"
Shaft Height3"
Shaft Dia.0.5"
"C" Dim9.2
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
