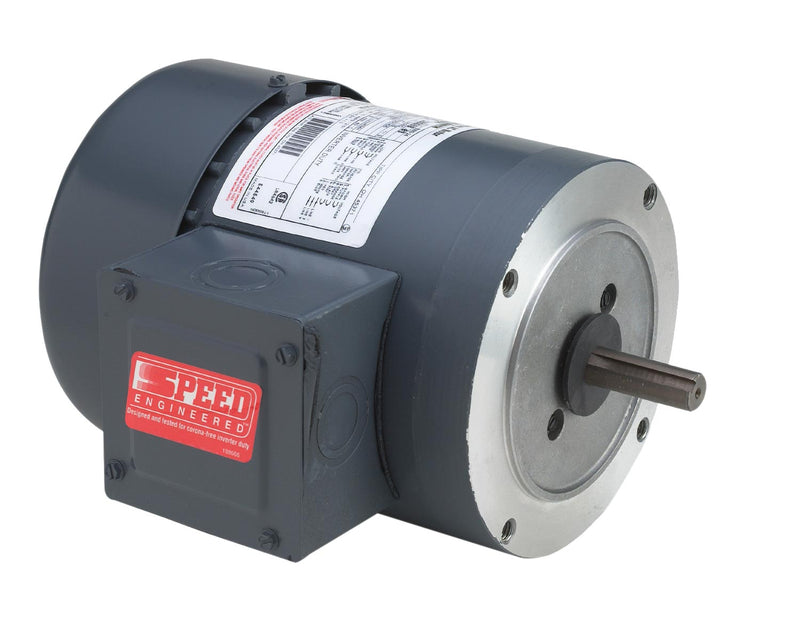

Century AO Smith H035 3-Phase C-Face Motor, 3/4 HP, 1140 RPM, 200-230, 460V, 56C Frame

CenturySKU: c2091586
MPN : H035
Weight : 15.0 lb
filler

Price:
$613.11 $747.70

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 3/4, Nameplate RPM: 1140, Voltage: 200-230/460, Frame: 56C, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.21, Protection: None, Thermal Protection: No, Cooling: Fan Cooled.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP3/4
Nameplate RPM1140
Voltage200-230/460
Frame56C
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim12.21
ProtectionNone
Thermal ProtectionNo
CoolingFan Cooled
