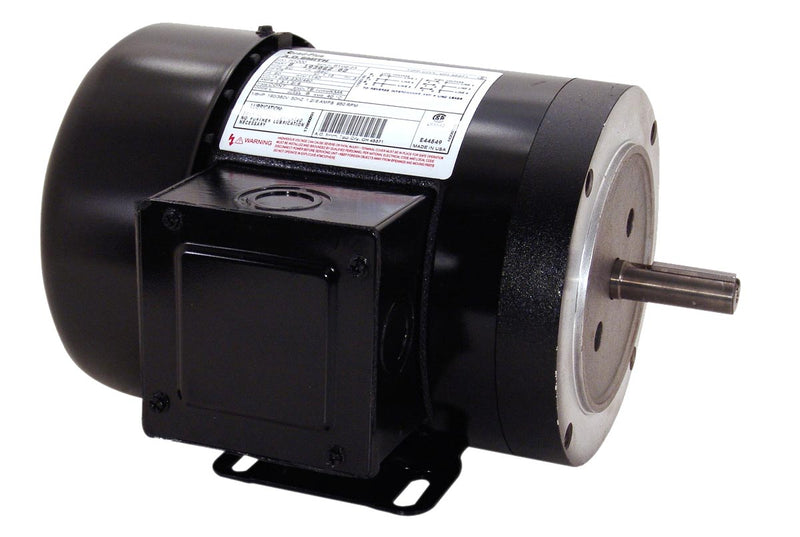

Century AO Smith H1001 3-Phase C-Face Motor, 1/3 HP, 3450 RPM, 208-230, 460V, 56C Frame

CenturySKU: c2091596
MPN : H1001
Weight : 15.0 lb

filler

Price:
$325.54 $397.00

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, No brake kit available

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1/3, Nameplate RPM: 3450, Voltage: 208-230/460, Frame: 56C, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Removable, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", Protection: None, Thermal Protection: No, Cooling: Fan Cooled.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP1/3
Nameplate RPM3450
Voltage208-230/460
Frame56C
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseRemovable
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
ProtectionNone
Thermal ProtectionNo
CoolingFan Cooled
