- Cross Reference: Bell & Gosset and Armstrong
- Features: Red paint, No base, Replaces Bell & Gosset and Armstrong

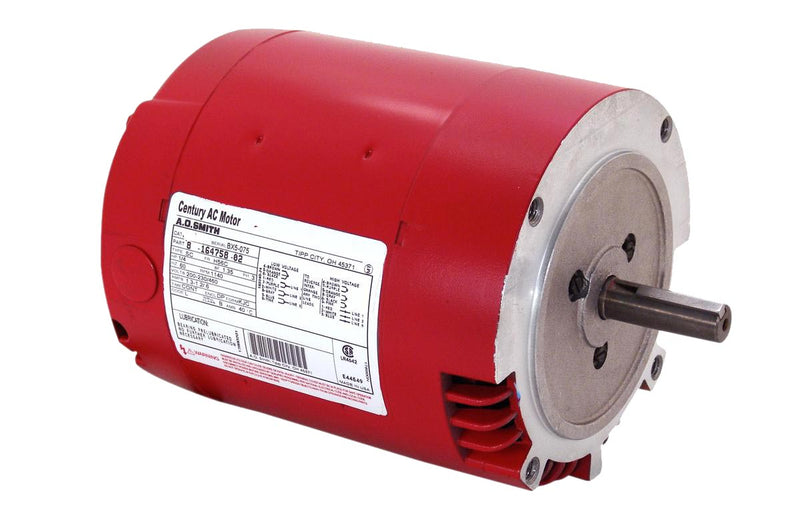

Item: Water Circulator Motor, Motor Type: 3-Phase, HP: 1-1/2, Nameplate RPM: 1725, Voltage: 575, Frame: 56CZ, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 2.1, Bearings: Ball, Base: C-Face, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.063", Shaft Dia.: 0.625", Thermal Protection: No, Cooling: Ambient.
| Item | Water Circulator Motor |
| Motor Type | 3-Phase |
| HP | 1-1/2 |
| Nameplate RPM | 1725 |
| Voltage | 575 |
| Frame | 56CZ |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 2.1 |
| Bearings | Ball |
| Base | C-Face |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 2.063" |
| Shaft Dia. | 0.625" |
| Thermal Protection | No |
| Cooling | Ambient |
