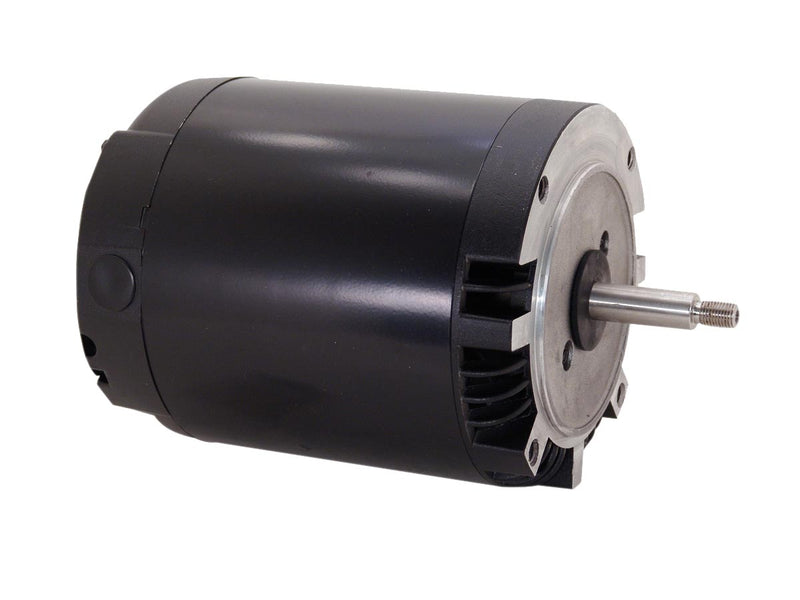

Century AO Smith H155 C-Face Com. Pump Motor, 1/2 HP, 3-Phase, 3450 RPM, 208-230, 460V, 56J Frame

CenturySKU: c2091034
MPN : H155
Weight : 15.0 lb
filler

Price:
$263.49 $321.33

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, 1.0 service factor at 50 Hz, Stainless steel shaft

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1/2, Nameplate RPM: 3450, Voltage: 208-230/460, Frame: 56J, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 3, Speeds: 1, Service Factor: 1.6, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 11.04, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP1/2
Nameplate RPM3450
Voltage208-230/460
Frame56J
EnclosureDrip Proof
RotationCW/CCW
Hz50, 60
Phase3
Speeds1
Service Factor1.6
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim11.04
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
