- Features: 40 degree C ambient

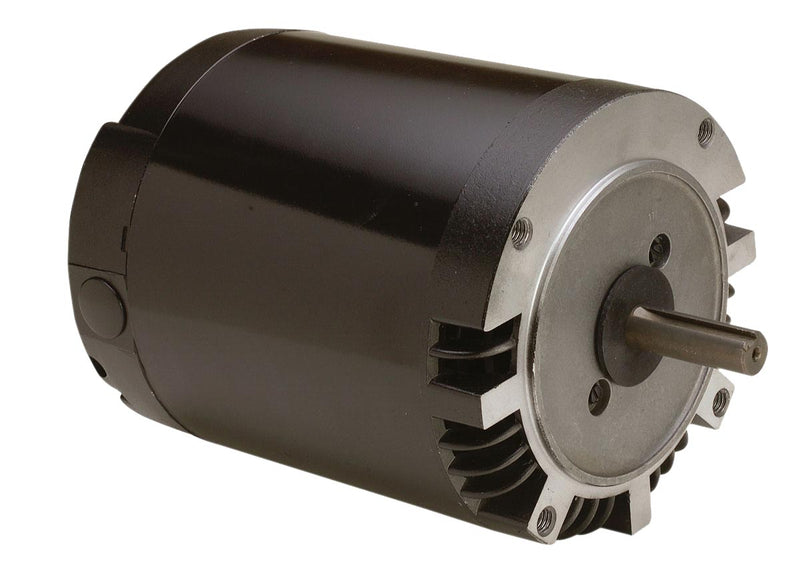

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1/3, Nameplate RPM: 3450, Voltage: 575, Frame: 56C, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.75, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 10.54, Protection: None, Thermal Protection: No, Cooling: Ambient.
| Item | General Purpose AC Motor |
| Motor Type | 3-Phase |
| HP | 1/3 |
| Nameplate RPM | 3450 |
| Voltage | 575 |
| Frame | 56C |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 3 |
| Speeds | 1 |
| Service Factor | 1.75 |
| Insulation Class | B |
| Bearings | Ball |
| Base | None |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.625" |
| "C" Dim | 10.54 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Ambient |
