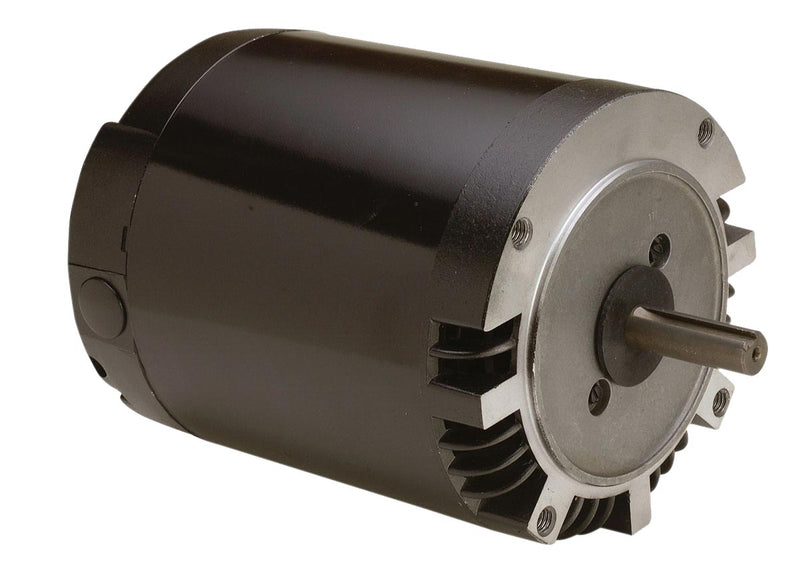

Century AO Smith H251 C-Face Com. Pump Motor, 1/3 HP, 3-Phase, 3450 RPM, 200-230, 460V, 56C Frame

CenturySKU: c2091029
MPN : H251
Weight : 15.0 lb

filler

Price:
$264.53 $322.60

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, 1.0 service factor at 50 Hz

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1/3, Nameplate RPM: 3450, Voltage: 200-230/460, Frame: 56C, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 3, Speeds: 1, Service Factor: 1.75, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 10.54, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP1/3
Nameplate RPM3450
Voltage200-230/460
Frame56C
EnclosureDrip Proof
RotationCW/CCW
Hz50, 60
Phase3
Speeds1
Service Factor1.75
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim10.54
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
