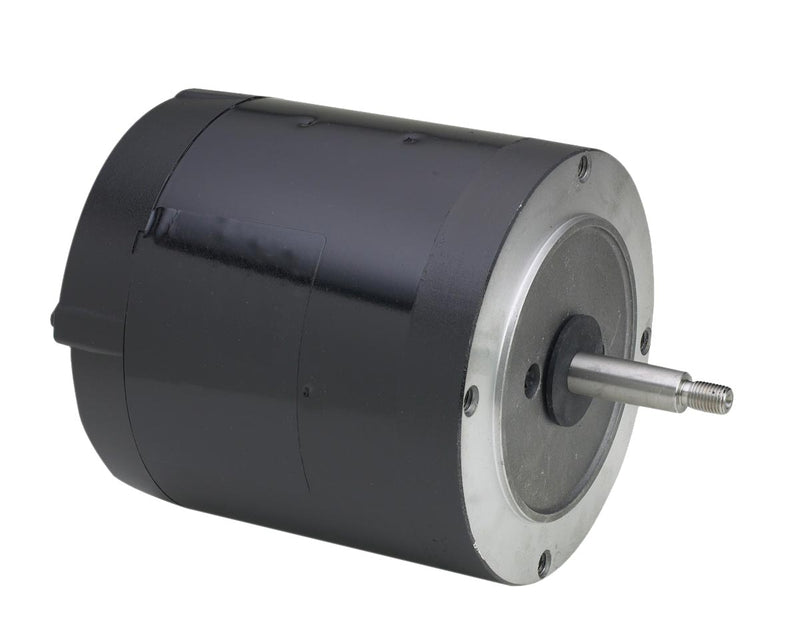

Century AO Smith H259 C-Face Com. Pump Motor, 1/3 HP, 3-Phase, 3450 RPM, 200-230, 460V, 56J Frame
Availability : Usually Ships in 3-5 Business Days
- Features: 40 degree C ambient, Stainless steel shaft
Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1/3, Nameplate RPM: 3450, Voltage: 200-230/460, Frame: 56J, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 9.68, Protection: None, Thermal Protection: No, Cooling: Ambient.
| Item | General Purpose AC Motor |
| Motor Type | 3-Phase |
| HP | 1/3 |
| Nameplate RPM | 3450 |
| Voltage | 200-230/460 |
| Frame | 56J |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 3 |
| Speeds | 1 |
| Service Factor | 1.15 |
| Insulation Class | B |
| Bearings | Ball |
| Base | None |
| Shaft Type | Threaded |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.625" |
| "C" Dim | 9.68 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Ambient |
