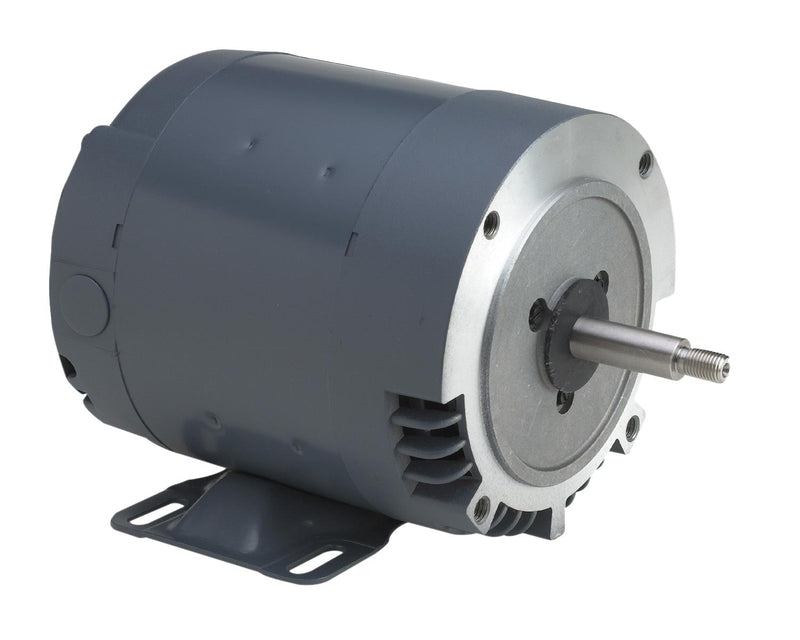

Century AO Smith H285 3-Phase C-Face Motor, 1/3 HP, 3450, 2850 RPM, 200-230, 460V, 56C Frame

CenturySKU: c2091616
MPN : H285
Weight : 15.0 lb

filler

Price:
$289.61 $353.18

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, 1.0 service factor at 50 Hz, 203 stainless steel shaft

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1/3, Nameplate RPM: 3450, 2850, Voltage: 200-230/460, Frame: 56C, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 3, Speeds: 1, Service Factor: 1.75, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 10.32, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP1/3
Nameplate RPM3450, 2850
Voltage200-230/460
Frame56C
EnclosureDrip Proof
RotationCW/CCW
Hz50, 60
Phase3
Speeds1
Service Factor1.75
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim10.32
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
