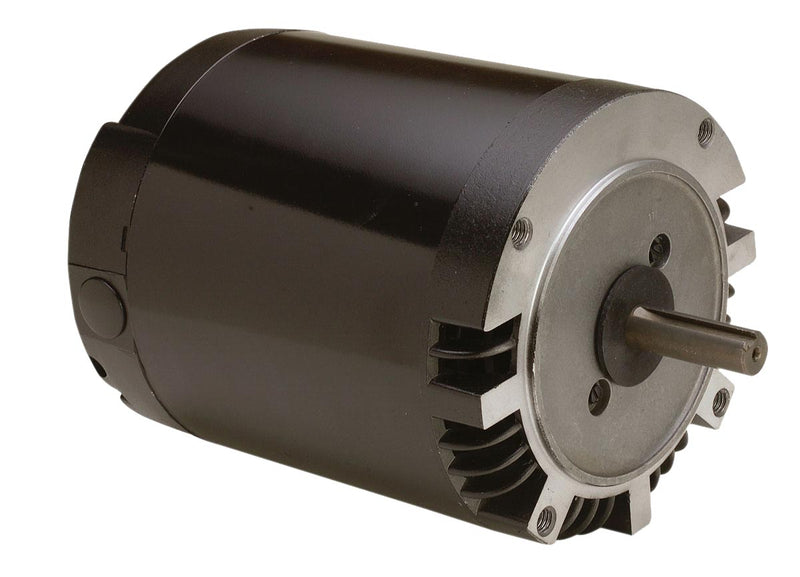

Century AO Smith H298 C-Face Com. Pump Motor, 3/4 HP, 3-Phase, 3450 RPM, 575V, 56C Frame

CenturySKU: c2091037
MPN : H298
Weight : 15.0 lb

filler

Price:
$286.64 $349.56

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 3/4, Nameplate RPM: 3450, Voltage: 575, Frame: 56C, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.5, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 11.29, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP3/4
Nameplate RPM3450
Voltage575
Frame56C
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.5
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim11.29
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
