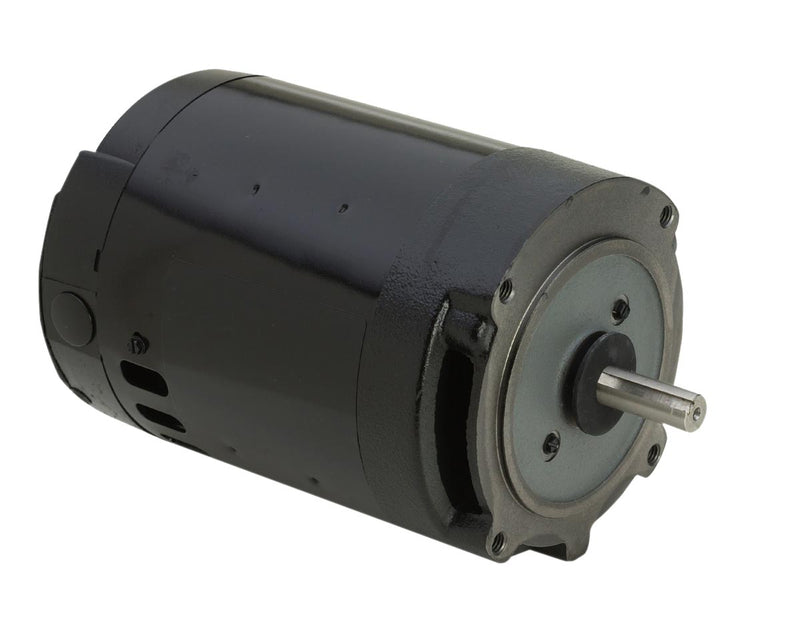

Century AO Smith H451 C-Face Pool Motor, 3/4 HP, 3-Phase, 3450 RPM, 208-230, 460V, 56J Frame

CenturySKU: c2091021
MPN : H451
Weight : 15.0 lb

filler

Price:
$363.96 $443.85

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, 3450 RPM at 60 Hz and 2875 RPM at 50 Hz, Stainless steel shaft

Item: Pool and Spa Pump Motor, Motor Type: 3-Phase, HP: 3/4, Nameplate RPM: 3450, Voltage: 208-230/460, Frame: 56J, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 1, Speeds: 1, Service Factor: 1.5, Insulation Class: A, Bearings: Ball, Base: None, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.12, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemPool and Spa Pump Motor
Motor Type3-Phase
HP3/4
Nameplate RPM3450
Voltage208-230/460
Frame56J
EnclosureDrip Proof
RotationCW/CCW
Hz50, 60
Phase1
Speeds1
Service Factor1.5
Insulation ClassA
BearingsBall
BaseNone
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim12.12
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
