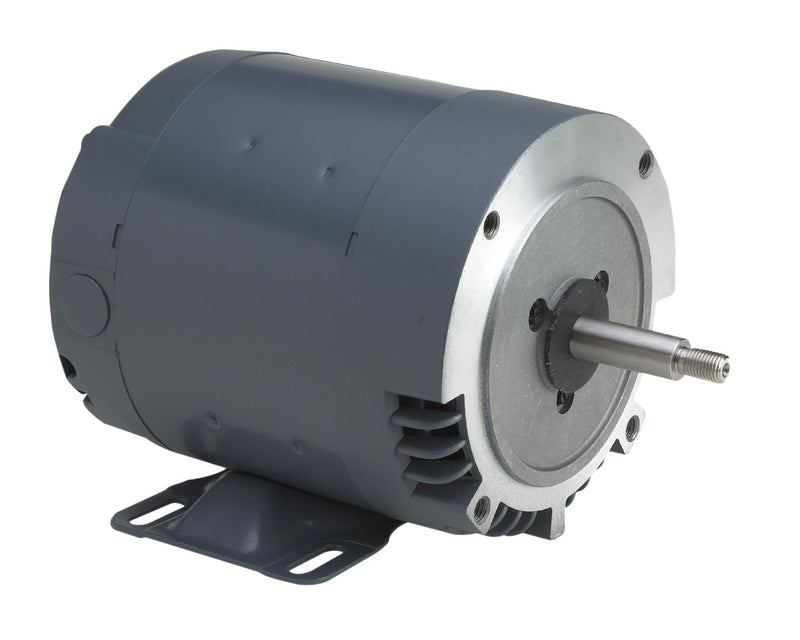

Century AO Smith H477 3-Phase C-Face Motor, 3/4 HP, 3450, 2850 RPM, 200-230, 460V, 56J Frame

CenturySKU: c2091624
MPN : H477
Weight : 15.0 lb
filler

Price:
$357.54 $436.02

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, 1.0 service factor at 50 Hz, 303 stainless steel shaft

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 3/4, Nameplate RPM: 3450, 2850, Voltage: 200-230/460, Frame: 56J, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 3, Speeds: 1, Service Factor: 1.5, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.57, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP3/4
Nameplate RPM3450, 2850
Voltage200-230/460
Frame56J
EnclosureDrip Proof
RotationCW/CCW
Hz50, 60
Phase3
Speeds1
Service Factor1.5
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.57
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
