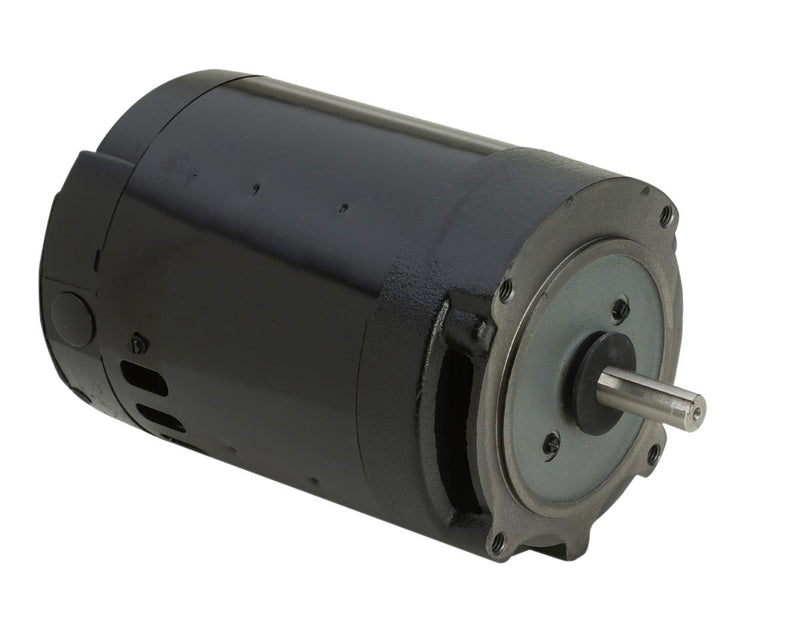

Century AO Smith H513 C-Face Pool Motor, 1 HP, 3-Phase, 3450 RPM, 208-230, 460V, 56C Frame

CenturySKU: c2091022
MPN : H513
Weight : 15.0 lb

filler

Price:
$257.59 $314.13

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, 3450 RPM at 60 Hz and 2875 RPM at 50 Hz, Stainless steel shaft

Item: Pool and Spa Pump Motor, Motor Type: 3-Phase, HP: 1, Nameplate RPM: 3450, Voltage: 208-230/460, Frame: 56C, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 1, Speeds: 1, Service Factor: 1.4, Insulation Class: A, Bearings: Ball, Base: None, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.62, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemPool and Spa Pump Motor
Motor Type3-Phase
HP1
Nameplate RPM3450
Voltage208-230/460
Frame56C
EnclosureDrip Proof
RotationCW/CCW
Hz50, 60
Phase1
Speeds1
Service Factor1.4
Insulation ClassA
BearingsBall
BaseNone
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim12.62
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
