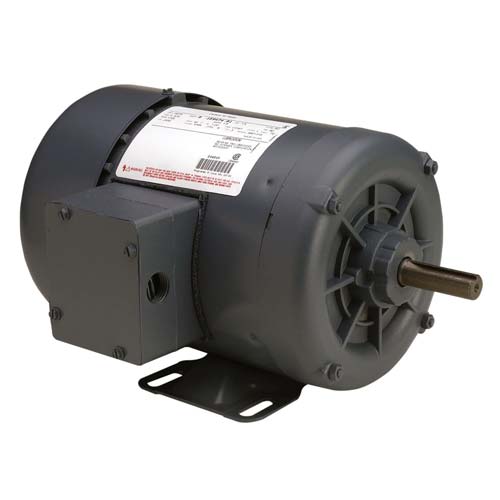

Century AO Smith H535L 3-Phase Rigid Motor, 1-1/2 HP, 1725 RPM, 200-230, 460V, 56H Frame, Replaced w/ Century H535LES

CenturySKU: c2091523
MPN : H535L
Weight : 15.0 lb
filler

Price:
$415.63 $506.87

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

REPLACED AS CENTURY UH535LES

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1-1/2, Nameplate RPM: 1725, Voltage: 200-230/460, Frame: 56H, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.25", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 13.4, Protection: None, Thermal Protection: No, Cooling: Fan Cooled.
ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP1-1/2
Nameplate RPM1725
Voltage200-230/460
Frame56H
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length2.25"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim13.4
ProtectionNone
Thermal ProtectionNo
CoolingFan Cooled
