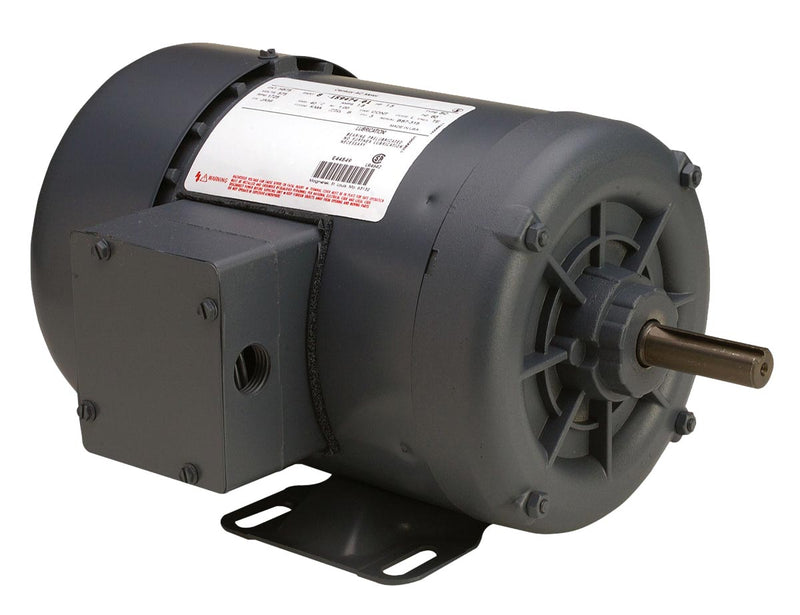

Century AO Smith H537 3-Phase Rigid Motor, 2 HP, 3450 RPM, 575V, 56 Frame

CenturySKU: c2091524
MPN : H537
Weight : 15.0 lb

filler

Price:
$107.73 $131.38

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 2, Nameplate RPM: 3450, Voltage: 575, Frame: 56, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 12.2, Protection: None, Thermal Protection: No, Cooling: Fan Cooled.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP2
Nameplate RPM3450
Voltage575
Frame56
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim12.2
ProtectionNone
Thermal ProtectionNo
CoolingFan Cooled
