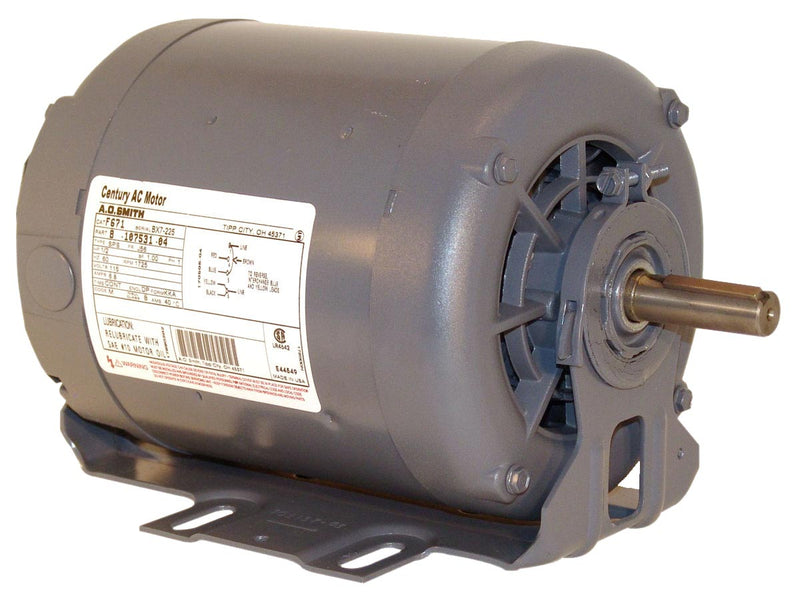

Century AO Smith H538 3-Phase Resilient Motor, 2 HP, 3450 RPM, 200-230, 460V, 56 Frame

CenturySKU: c2091558
MPN : H538
Weight : 15.0 lb
filler

Price:
$614.69 $749.62

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 2, Nameplate RPM: 3450, Voltage: 200-230/460, Frame: 56, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.2, Insulation Class: B, Bearings: Ball, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.4, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP2
Nameplate RPM3450
Voltage200-230/460
Frame56
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.2
Insulation ClassB
BearingsBall
BaseResilient
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.4
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
