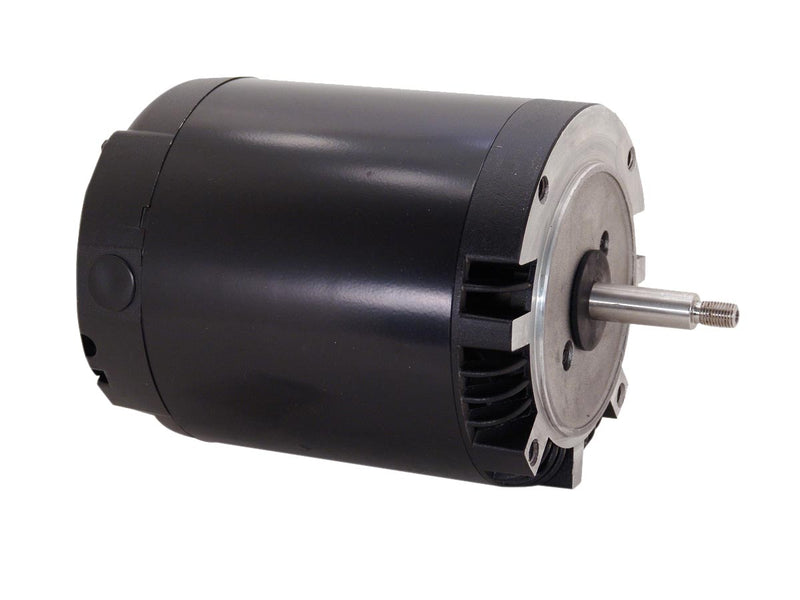

Century AO Smith H629 C-Face Com. Pump Motor, 2 HP, 3-Phase, 3450 RPM, 575V, 56J Frame

CenturySKU: c2091049
MPN : H629
Weight : 15.0 lb

filler

Price:
$513.44 $626.15

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Stainless steel shaft

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 2, Nameplate RPM: 3450, Voltage: 575, Frame: 56J, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.2, Insulation Class: B, Bearings: Ball, Base: None, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", "C" Dim: 12.79, Protection: None, Thermal Protection: No, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP2
Nameplate RPM3450
Voltage575
Frame56J
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.2
Insulation ClassB
BearingsBall
BaseNone
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
"C" Dim12.79
ProtectionNone
Thermal ProtectionNo
CoolingAmbient
