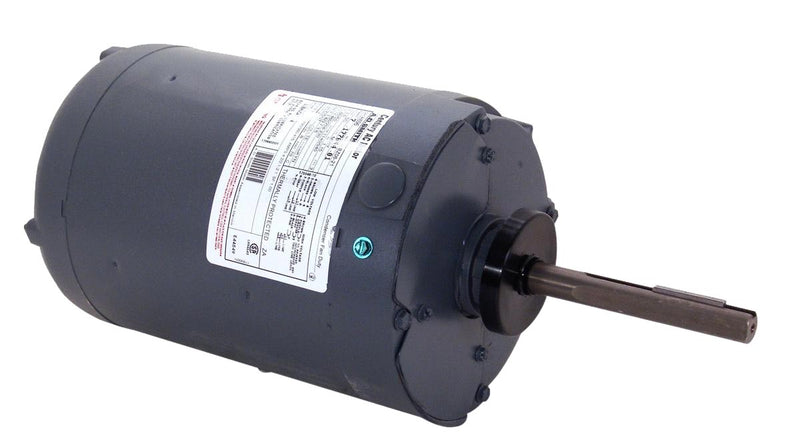

Century AO Smith H696 Condenser Motor, 1 HP, 3-Phase, 1140 RPM, 208-230, 460V, Replaced w/ Century H696V1

CenturySKU: c2090900
MPN : H696
Weight : 15.0 lb
filler

Price:
$710.46 $866.41

Availability : Usually Ships in 3-5 Business Days
  • Features: Quick connects, 70 degree C ambient, Shaft has both keyway and flat , 50-60 Hz, 1.15 Service Factor

Item: Condenser Fan Motor, Motor Type: 3-Phase, HP: 1, Nameplate RPM: 1140, Voltage: 208-230/460, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 50, 60, Phase: 3, Speeds: 1, Bearings: Ball, Shaft Number: 1, Shaft Length: 4.88", Shaft Dia.: 0.625", Thermal Protection: Yes, Cooling: Air Over.

ItemCondenser Fan Motor
Motor Type3-Phase
HP1
Nameplate RPM1140
Voltage208-230/460
EnclosureTotally Enclosed
RotationCW/CCW
Hz50, 60
Phase3
Speeds1
BearingsBall
Shaft Number1
Shaft Length4.88"
Shaft Dia.0.625"
Thermal ProtectionYes
CoolingAir Over
