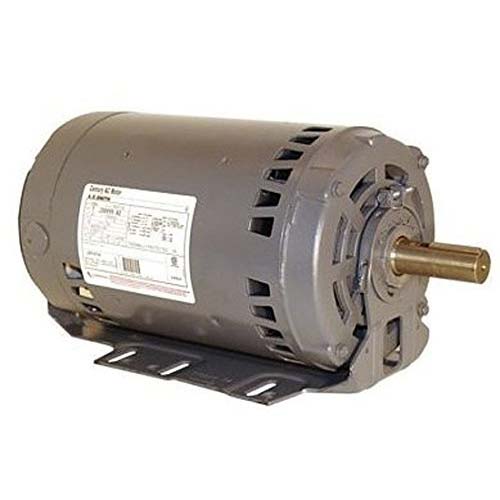

Century AO Smith H855L 3-Phase Resilient Motor, 3 HP, 1725 RPM, 200-230, 460V, 56HZ Frame

CenturySKU: c2091566
MPN : H855L
Weight : 15.0 lb
filler

Price:
$569.97 $695.09

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Quick connect design bracket, Horizontal mount only

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 3, Nameplate RPM: 1725, Voltage: 200-230/460, Frame: 56HZ, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Resilient, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.312", Shaft Height: 3.5", Shaft Dia.: 0.875", "C" Dim: 14.6, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP3
Nameplate RPM1725
Voltage200-230/460
Frame56HZ
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseResilient
Shaft TypeKey
Shaft Number1
Shaft Length2.312"
Shaft Height3.5"
Shaft Dia.0.875"
"C" Dim14.6
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
