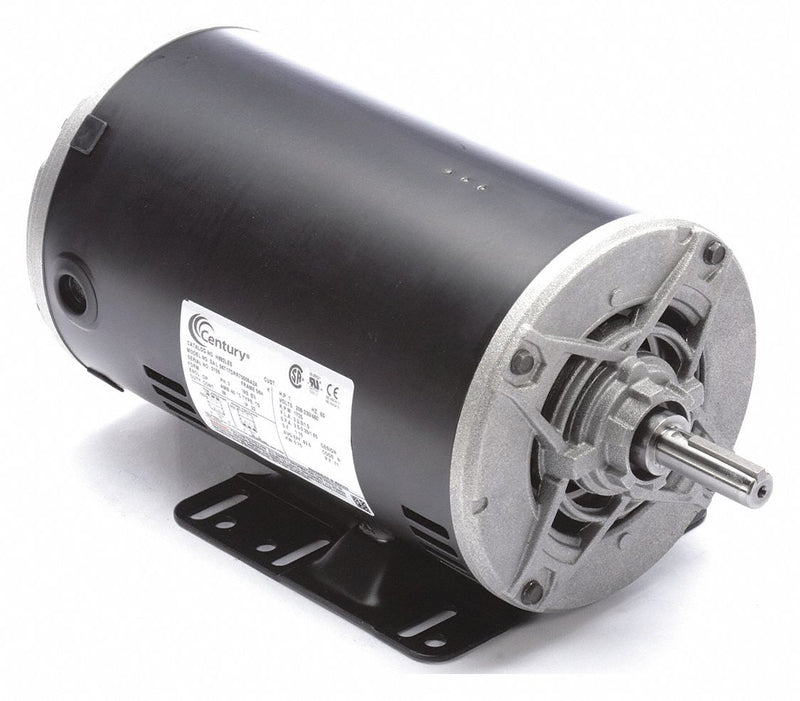

Belt Drive Motor; Motor Application: HVAC/R; Motor Sub Application: Belt Drive Fan/Blower; Motor Design: 3-Phase; HP: 1; No. of Speeds: 1; Nameplate RPM: 1725; Voltage: 208-230/460; Frame: 56H; Motor Enclosure Design: Open; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Hz: 60; Full Load Amps: 3.2-3/1.5; Motor Thermal Protection: Auto; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Keyed; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Length Less Shaft: 12 1/8 in; Overall Length: 14 in; Body Dia.: 6 7/16 in; Mounting Stud Pattern: 4-3/16 in x 4-3/16 in; Nominal Efficiency: 83.5 %; Duty: Continuous; Phase: 3; Manufacturers Warranty Length: 1 yr; Standards: CE Listed, CSA (LR2025), UL (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | 3-Phase |
| HP | 1 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Voltage | 208-230/460 |
| Frame | 56H |
| Motor Enclosure Design | Open |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Hz | 60 |
| Full Load Amps | 3.2-3/1.5 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 12 1/8 in |
| Overall Length | 14 in |
| Body Dia. | 6 7/16 in |
| Mounting Stud Pattern | 4-3/16 in x 4-3/16 in |
| Nominal Efficiency | 83.5 % |
| Duty | Continuous |
| Phase | 3 |
| Manufacturers Warranty Length | 1 yr |
| Standards | CE Listed, CSA (LR2025), UL (E49747) |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
