- Features: 60 degree C ambient, Includes capacitor, Open lead end only

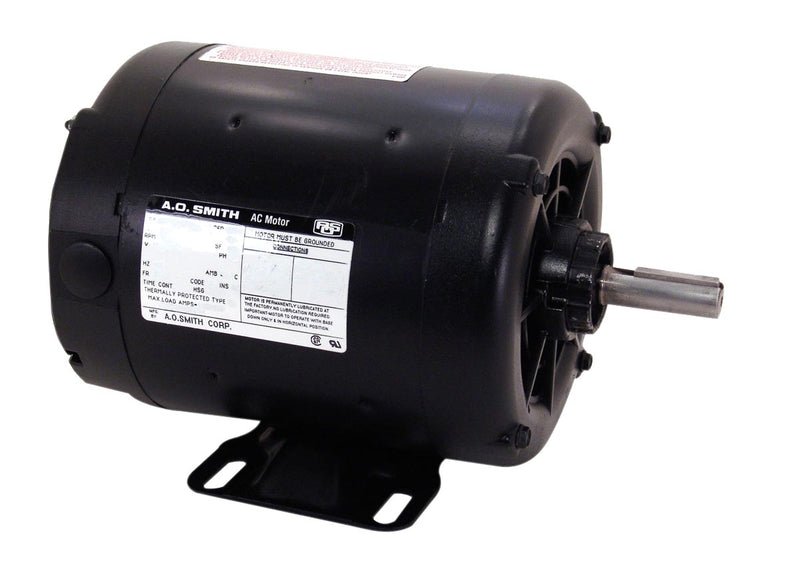

Item: Condenser Fan Motor, Motor Type: 3-Phase, HP: 1, Nameplate RPM: 1140, Voltage: 575, Frame: 56Y, Enclosure: Totally Encl, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 4.03", Shaft Height: 3.5", Shaft Dia.: 0.625", Thermal Protection: Yes, Cooling: Air Over.
| Item | Condenser Fan Motor |
| Motor Type | 3-Phase |
| HP | 1 |
| Nameplate RPM | 1140 |
| Voltage | 575 |
| Frame | 56Y |
| Enclosure | Totally Encl |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 3 |
| Speeds | 1 |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 4.03" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.625" |
| Thermal Protection | Yes |
| Cooling | Air Over |
