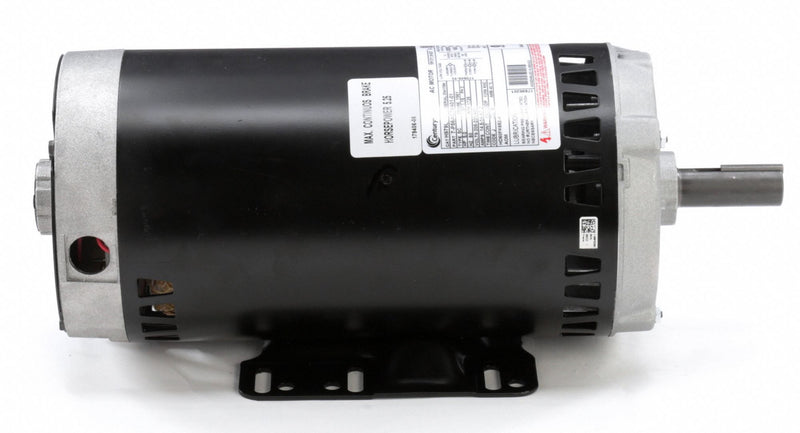

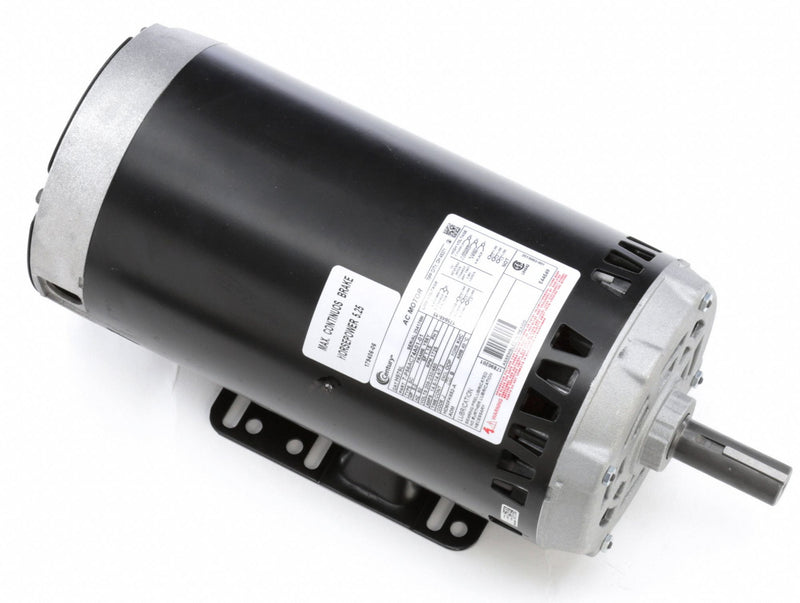

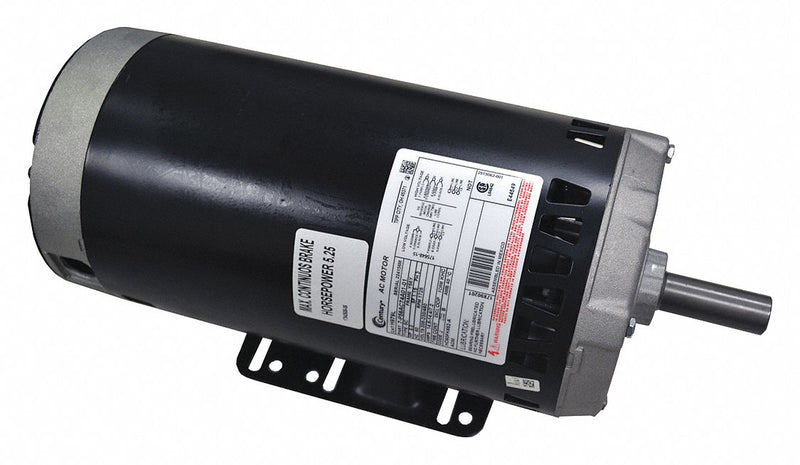

OEM Replacement Brand: Carrier/BDP; Item: Belt Drive Motor; Motor Design: 3-Phase; Phase: 3; HP: 5; No. of Speeds: 1; Voltage: 208-230/460; Motor Shaft Rotation: CW/CCW; Frame: 56Y; Motor Enclosure Design: Open Dripproof; Motor Mounting Type: Rigid Base; Shaft Dia.: 7/8 in; Shaft Length: 2 1/4 in; Number of Shafts: 1; Motor Thermal Protection: None; Nameplate RPM: 1725; Motor Application: OEM Replacement; Motor Sub Application: Belt Drive Fan/Blower; Full Load Amps: 14.5-14.4/7.2; Hz: 60; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1.15; Motor Bearings: Ball; Body Dia.: 6 1/2 in; Length Less Shaft: 14 in; Overall Length: 16 5/16 in; Capacitor Required: No; Replacement For: 182779; Application: Fans and Blowers; Standards: CSA Certified, UL Recognized
| OEM Replacement Brand | Carrier/BDP |
| Item | Belt Drive Motor |
| Motor Design | 3-Phase |
| Phase | 3 |
| HP | 5 |
| No. of Speeds | 1 |
| Voltage | 208-230/460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 56Y |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | None |
| Nameplate RPM | 1725 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Belt Drive Fan/Blower |
| Full Load Amps | 14.5-14.4/7.2 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Body Dia. | 6 1/2 in |
| Length Less Shaft | 14 in |
| Overall Length | 16 5/16 in |
| Capacitor Required | No |
| Replacement For | 182779 |
| Application | Fans and Blowers |
| Standards | CSA Certified, UL Recognized |
