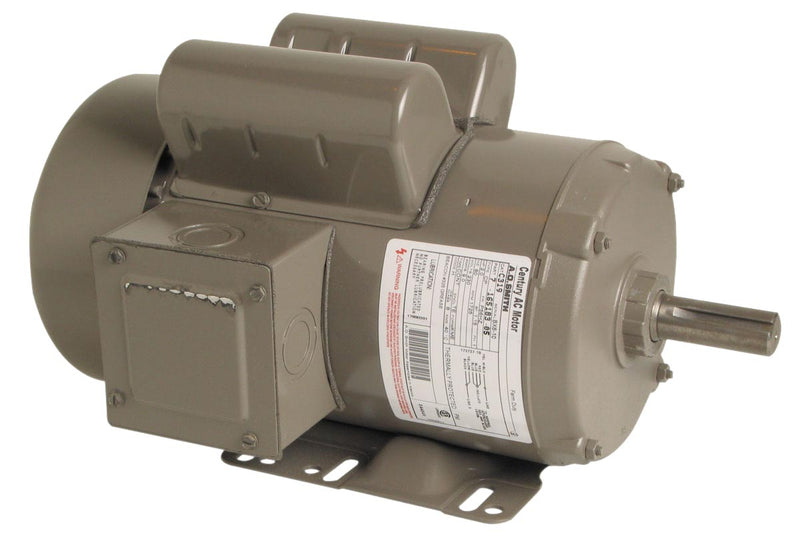

Century AO Smith K103C Farm Duty Motor, 1-1/2 HP, Cap Start Run, 1800 RPM, 115, 230V, 145TC Frame

CenturySKU: c2090668
MPN : K103C
Weight : 15.0 lb
filler

Price:
$484.29 $590.60

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, High starting torque, Condensate drain plugs, all parts corrosion resistant, C Face

Item: Farm Duty Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 1-1/2, Nameplate RPM: 1800, Voltage: 115/230, Frame: 145TC, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.25", Shaft Height: 3.5", Shaft Dia.: 0.875", "C" Dim: 14.4, Protection: Manual, Thermal Protection: Yes, Cooling: Fan Cooled.

ItemFarm Duty Motor
Motor TypeCapacitor-Start/Capacitor-Run
HP1-1/2
Nameplate RPM1800
Voltage115/230
Frame145TC
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length2.25"
Shaft Height3.5"
Shaft Dia.0.875"
"C" Dim14.4
ProtectionManual
Thermal ProtectionYes
CoolingFan Cooled
