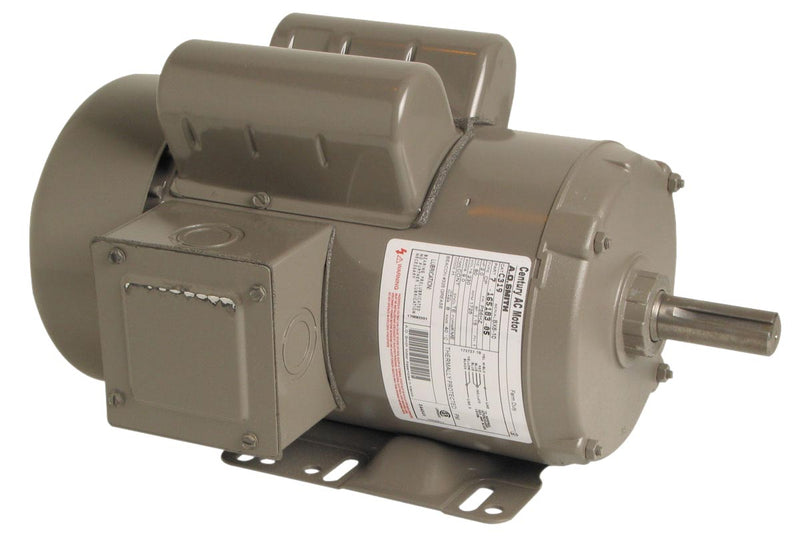

Century AO Smith K104 Farm Duty Motor, 1-1/2 HP, Cap Start Run, 1800 RPM, 115, 230V, 145T Frame, Replaced w/ Century K104V1
Availability : Usually Ships in 3-5 Business Days
- Features: 40 degreee C ambient, High starting torque
Item: Farm Duty Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 1-1/2, Nameplate RPM: 1800, Voltage: 115/230, Frame: 145T, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.31", Shaft Height: 3.5", Shaft Dia.: 0.875", "C" Dim: 15, Protection: Manual, Thermal Protection: Yes, Cooling: Fan Cooled.
| Item | Farm Duty Motor |
| Motor Type | Capacitor-Start/Capacitor-Run |
| HP | 1-1/2 |
| Nameplate RPM | 1800 |
| Voltage | 115/230 |
| Frame | 145T |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.15 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 2.31" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.875" |
| "C" Dim | 15 |
| Protection | Manual |
| Thermal Protection | Yes |
| Cooling | Fan Cooled |
