- Features: 40 degree C ambient, High starting torque, Condensate drain plugs, all parts corrosion resistant, Lifting provisions, C Face

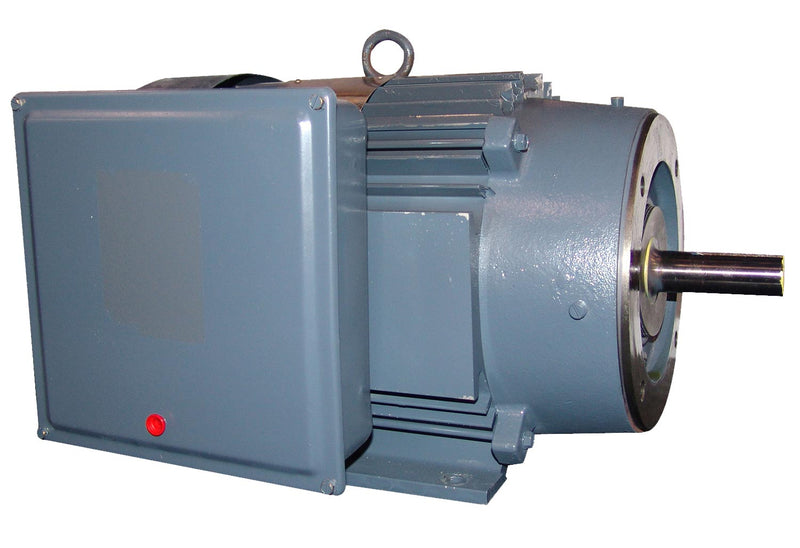

Item: Farm Duty Motor, Motor Type: Capacitor-Start, HP: 5, Nameplate RPM: 1800, Voltage: 230, Frame: 215TCZ, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 3.125", Shaft Height: 5.25", Shaft Dia.: 1.125", "C" Dim: 19.9, Protection: Manual, Thermal Protection: Yes, Cooling: Fan Cooled, Efficiency: 78.6.
| Item | Farm Duty Motor |
| Motor Type | Capacitor-Start |
| HP | 5 |
| Nameplate RPM | 1800 |
| Voltage | 230 |
| Frame | 215TCZ |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 3.125" |
| Shaft Height | 5.25" |
| Shaft Dia. | 1.125" |
| "C" Dim | 19.9 |
| Protection | Manual |
| Thermal Protection | Yes |
| Cooling | Fan Cooled |
| Efficiency | 78.6 |
