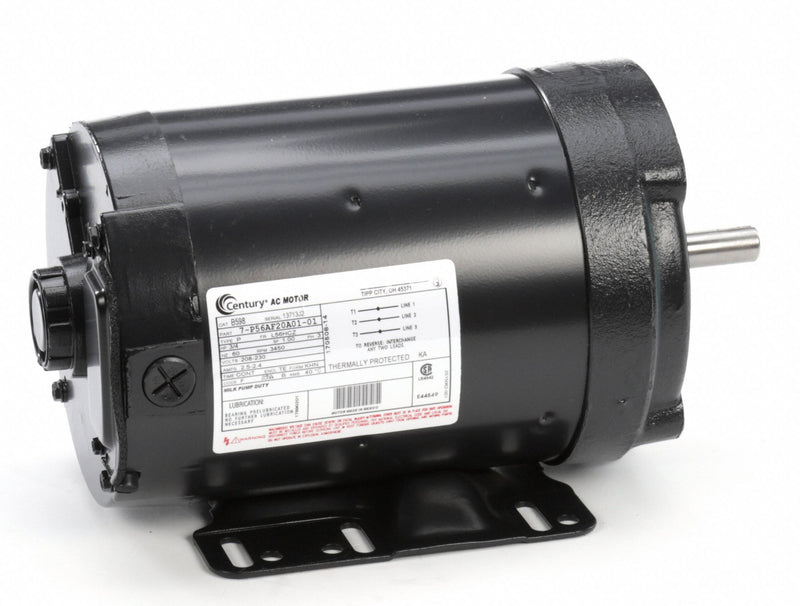

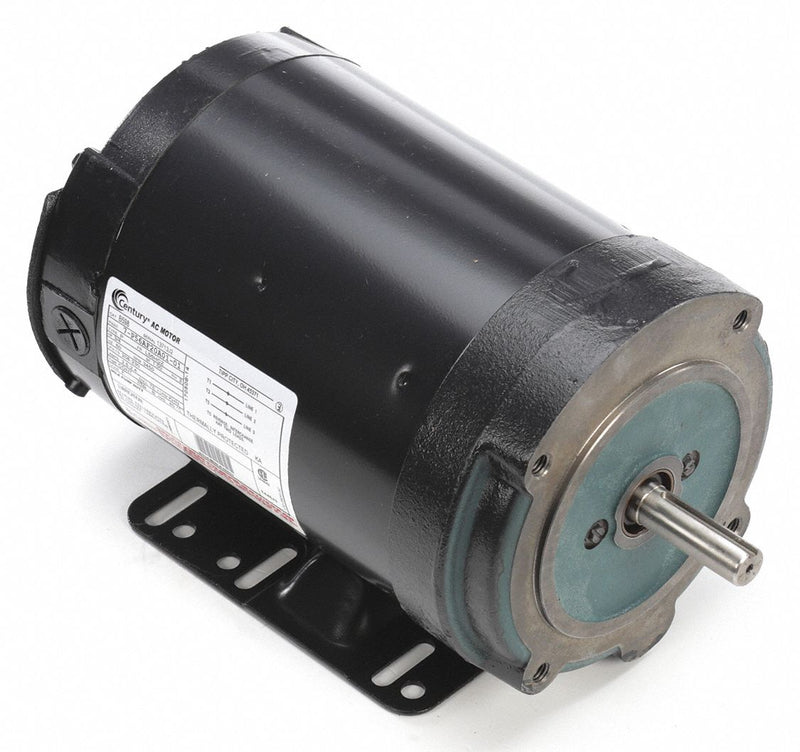

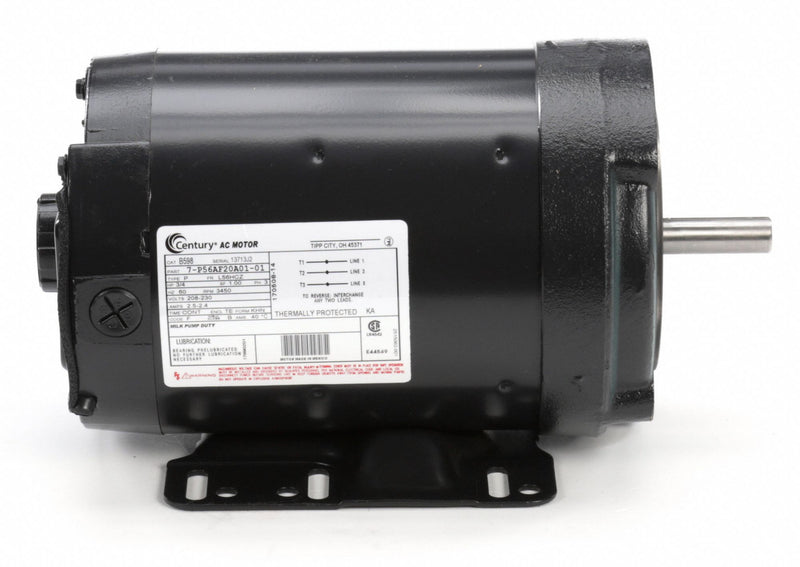

Ramp up your dairy production with this milk pump motor. It features a single-phase, permanent split capacitor motor design to provide high starting torque. It also features rolled steel construction for lower weight and excellent environmental durability. It includes a capacitor and double-shielded ball bearings, along with a stainless steel shaft. It can be mounted horizontally, or vertically, with the shaft facing down. Continuous-duty. The totally enclosed, nonventilated enclosure design helps prevent contamination by keeping the motor from dampness and airborne particles.
| Item - Farm Duty Motors | Milk Pump Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Milk Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 3/4 |
| Nameplate RPM | 3450 |
| Frame | 56HCZ |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 2.5-2.4 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal or Vertical Shaft Down |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Finish | Black |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 10 5/16 in |
| Overall Length | 12 3/16 in |
| Ins. Class | B |
| Duty | Continuous |
| Nominal Efficiency | 67 % |
| Motor Efficiency Group | Standard Efficient |
| Includes | Stainless Steel Shaft |
| Standards | CSA Certified (LR4642), UL Recognized (E44549) |
| Item | Milk Pump Motor |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
