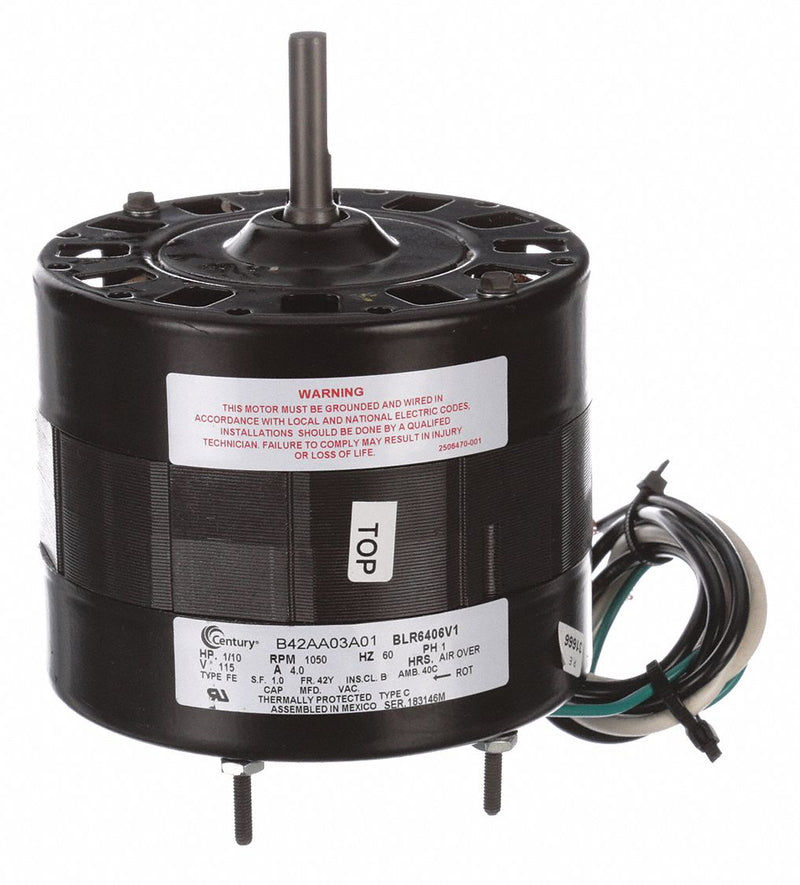

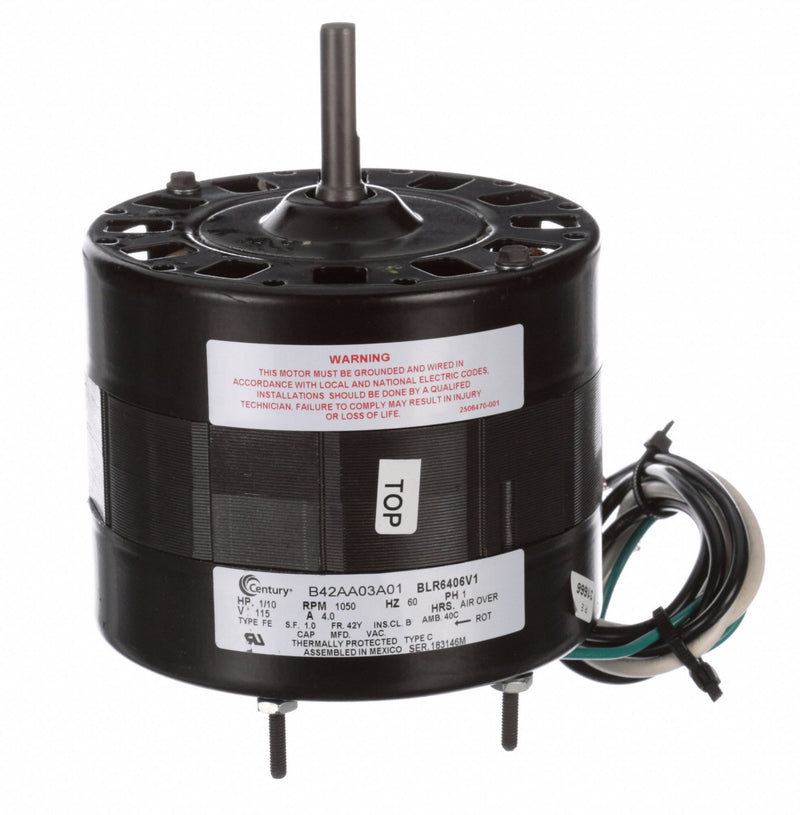

Keep air circulating with this direct drive blower motor. It features a shaded pole motor design, for use in small, direct-drive fans and blowers. Auto thermal protection allows the motor to start automatically after tripping.
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/10 |
| Nameplate RPM | 1050 |
| Voltage | 115 |
| Full Load Amps | 4 |
| Hz | 60 |
| Phase | 1 |
| Frame | 42Y |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 60 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 1 |
| Motor Mounting Type | Stud |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Sleeve |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CCWLE |
| Nominal Efficiency | 36.1 % |
| Body Dia. | 5 in |
| Length Less Shaft | 4 1/8 in |
| Overall Length | 6 in |
| Shaft Dia. | 3/8 in |
| Shaft Length | 1 13/16 in |
| Motor Shaft Design | Flat |
| Capacitor Required | No |
| Mounting Stud Location | Opposite Shaft End |
| Mounting Stud Pattern | 4 in x 2-5/16 in |
| Stud Size | #8-32 |
| Mounting Stud Length | 5/8 in |
| Bolt Circle Dia. | 4 27/64 in |
| Standards | CSA Certified (LR43341), UL Recognized (E46412) |
| Application | Blowers, Fans and Air Circulators |
| Voltage Compatibility | 115, 120 |
