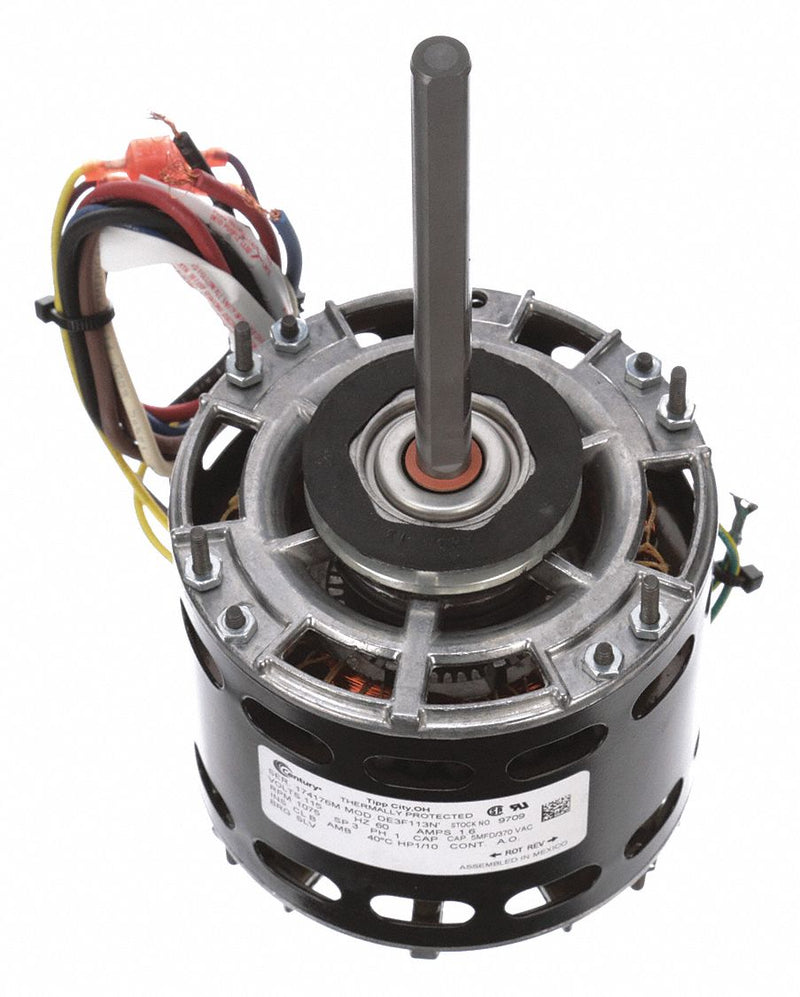

Century 1/10 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 115 Voltage - 9709

CenturySKU: C1561821
MPN : 9709
Weight : 9.35 lb

filler

Price:
$222.61 $359.04

Availability : Usually Ships in 10 Business Days

This CENTURY direct drive blower motor is suitable for furnace blowers and other shaft-mounted fan and blower applications.

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Air-Over
HP1/10
Nameplate RPM1075
Voltage115
Full Load Amps1.6
Hz60
Phase1
Frame42Y
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds3
Motor Mounting TypeRing
Motor Mounting PositionHorizontal
Motor BearingsSleeve
Motor Thermal ProtectionAuto
Motor Shaft RotationCW/CCW
Body Dia.5 in
Length Less Shaft5 3/16 in
Shaft Dia.1/2 in
Shaft Length5 1/4 in
Motor Shaft DesignFlat
Capacitor Required2MDV4
Resilient Ring Dia.2 1/2 in
Ring to Ring Center4 13/16 in
Mounting Stud LocationBoth Ends
Mounting Stud Pattern2-5/16 in x 4 in
Stud Size#8-32
Bolt Circle Dia.4 5/8 in
StandardsCSA Certified, UL Recognized
ApplicationBlowers, Fans and Air Circulators
IncludesResilient Mounting Ring
Voltage Compatibility115, 120
