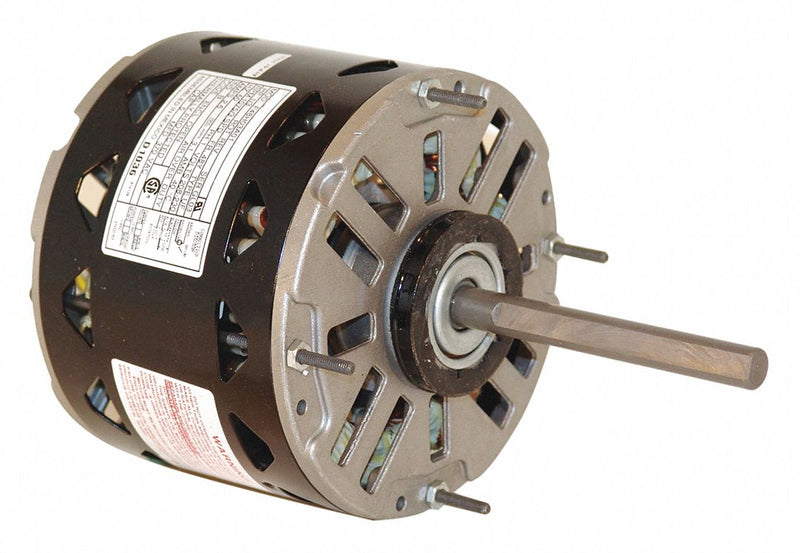

Direct Drive Blower Motor, Motor Application HVAC/R, Motor Sub Application Direct Dr Fan/Blower, Motor Type PSC, Enclosure Open Air-Over, HP 1/2, Nameplate RPM 1075, Voltage 115, Full Load Amps 6.5, Hz 60, Phase 1, Frame 48Y, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous Air Over, Number of Speeds 2, Mounting Ring/Stud/Band, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8", Length Less Shaft 5-7/8", Shaft Dia. 1/2", Shaft Length 4", Capacitor Included No, Capacitor Required 2MDV7, Resilient Ring Dia. 2-1/4", Ring to Ring Center 5-7/16", Stud Pattern 3-5/8 x 3-5/8", Stud Size #8-32 x 5/8", RPM Range 1001-1100, Standards UL Recognized, CSA Certified, Application Direct Drive Furnace Blowers, Unit Heaters, Air Conditioners, Many Other Shaft Mounted Fan and Blower Uses, Includes 2-1/4" Rings with 2-1/2" Adapters
