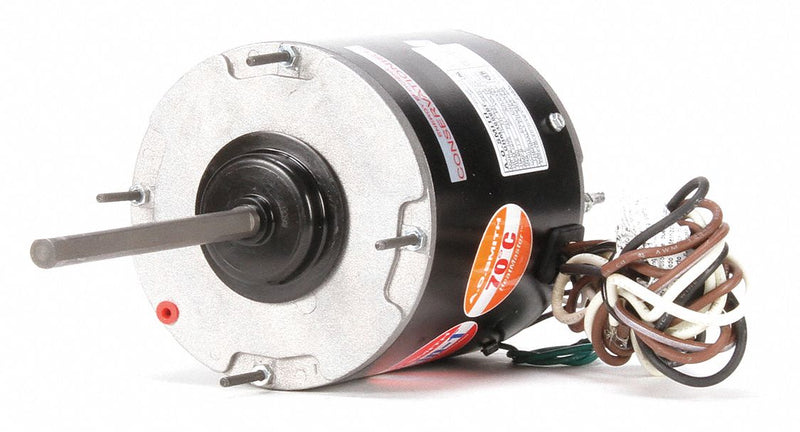

Multiple-horsepower design eliminates the need to select speed or change capacitor size during installation. Totally enclosed construction allows all-angle mounting. Energy-efficient PSC design with high-efficiency rating ensures performance in elevated temperatures. Features quick-change rotation reversal plugs and drain plugs.
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/2 to 1/5 |
| Nameplate RPM | 1075 |
| Voltage | 460 |
| Full Load Amps | 1.5 |
| Hz | 60 |
| Phase | 1 |
| Frame | 48Y |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 70 Degrees C |
| Ins. Class | F |
| Duty | Continuous |
| No. of Speeds | 1 |
| Motor Mounting Type | Stud |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Body Dia. | 5 11/16 in |
| Length Less Shaft | 5 3/8 in |
| Overall Length | 12 1/8 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 5 1/2 in |
| Motor Shaft Design | Flat |
| Capacitor Required | 2MDV7 |
| Mounting Stud Location | Both Ends |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | #8-32 |
| Mounting Stud Length | 7/8 in, 1 1/8 in |
| Bolt Circle Dia. | 5 1/8 in |
| Standards | CSA Certified, UL Recognized |
| Application | Blowers, Fans and Air Circulators |
| Manufacturers Warranty Length | 1 yr |
| Includes | Reversing Plug |
| Voltage Compatibility | 208-230/460, 460 |
