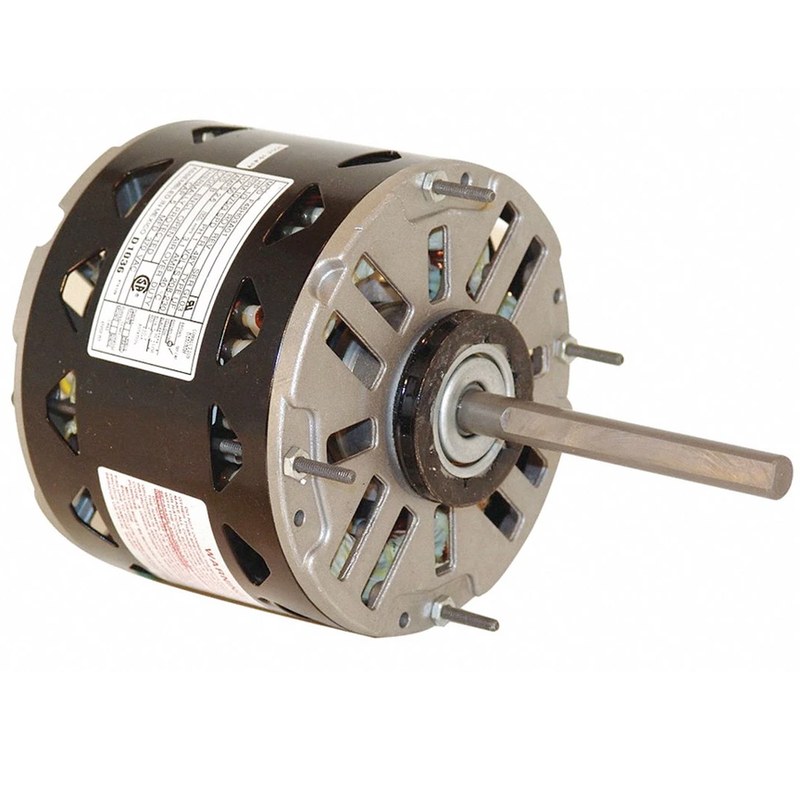

Century 1/3 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 208-230 Voltage - D1036

CenturySKU: C1560551
MPN : D1036
Weight : 12.3 lb
filler

Price:
$88.19 $107.55

Availability : Quick Ship - Usually Delivered in 2 Business Days

Direct Drive Blower Motor; Motor Application: HVAC/R; Motor Sub Application: Direct Drive Fan/Blower; Motor Design: Permanent Split Capacitor; Motor Enclosure Design: Open Air-Over; HP: 1/3; Nameplate RPM: 1075; Voltage: 208-230; Full Load Amps: 2.6; Hz: 60; Phase: 1; Frame: 48Y; Motor Service Factor: 1; Max. Ambient Temp.: 40 Degrees C; Ins. Class: B; Duty: Continuous; No. of Speeds: 3; Motor Mounting Type: Stud; Motor Mounting Position: All Angle; Motor Bearings: Sleeve; Motor Thermal Protection: Auto; Motor Shaft Rotation: CW/CCW; Body Dia.: 5 5/8 in; Length Less Shaft: 5 3/8 in; Shaft Dia.: 1/2 in; Shaft Length: 4 in; Motor Shaft Design: Flat; Capacitor Required: 2MDV4; Resilient Ring Dia.: 2 1/4 in; Ring to Ring Center: 4 15/16 in; Mounting Stud Pattern: 3-5/8 in x 3-5/8 in; Stud Size: #8-32; Standards: CSA Certified, UL Recognized; Application: Blowers, Fans and Air Circulators; Voltage Compatibility: 115/208-230, 208-230, 208-240

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Air-Over
HP1/3
Nameplate RPM1075
Voltage208-230
Full Load Amps2.6
Hz60
Phase1
Frame48Y
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds3
Motor Mounting TypeStud
Motor Mounting PositionAll Angle
Motor BearingsSleeve
Motor Thermal ProtectionAuto
Motor Shaft RotationCW/CCW
Body Dia.5 5/8 in
Length Less Shaft5 3/8 in
Shaft Dia.1/2 in
Shaft Length4 in
Motor Shaft DesignFlat
Capacitor Required2MDV4
Resilient Ring Dia.2 1/4 in
Ring to Ring Center4 15/16 in
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Size#8-32
StandardsCSA Certified, UL Recognized
ApplicationBlowers, Fans and Air Circulators
Voltage Compatibility115/208-230, 208-230, 208-240
