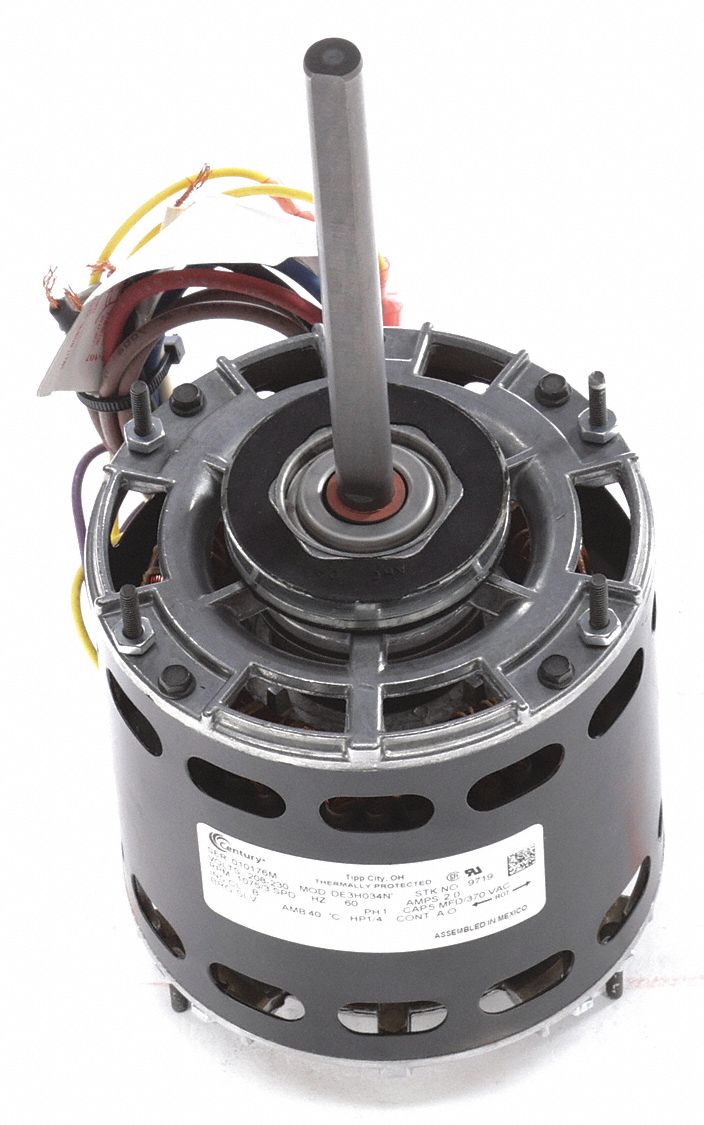

This CENTURY direct drive blower motor is suitable for furnace blowers and other shaft-mounted fan and blower applications.
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/4 |
| Nameplate RPM | 1075 |
| Voltage | 208-230 |
| Full Load Amps | 2 |
| Hz | 60 |
| Phase | 1 |
| Frame | 42Y |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 3 |
| Motor Mounting Type | Ring |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Sleeve |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Body Dia. | 5 in |
| Length Less Shaft | 5 11/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 5 1/4 in |
| Motor Shaft Design | Flat |
| Capacitor Required | 2MDV4 |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 5 5/16 in |
| Mounting Stud Location | Both Ends |
| Mounting Stud Pattern | 2-5/16 in x 4 in |
| Stud Size | #8-32 |
| Bolt Circle Dia. | 4 5/8 in |
| Standards | CSA Certified, UL Recognized |
| Application | Blowers, Fans and Air Circulators |
| Includes | Resilient Mounting Ring |
| Voltage Compatibility | 115/208-230, 208-230, 208-240 |
