Availability : Usually Ships in 3-5 Business Days
Use as an OEM replacement for Aaon brand fan and blower motors.
OEM Replacement Brand | Aaon |

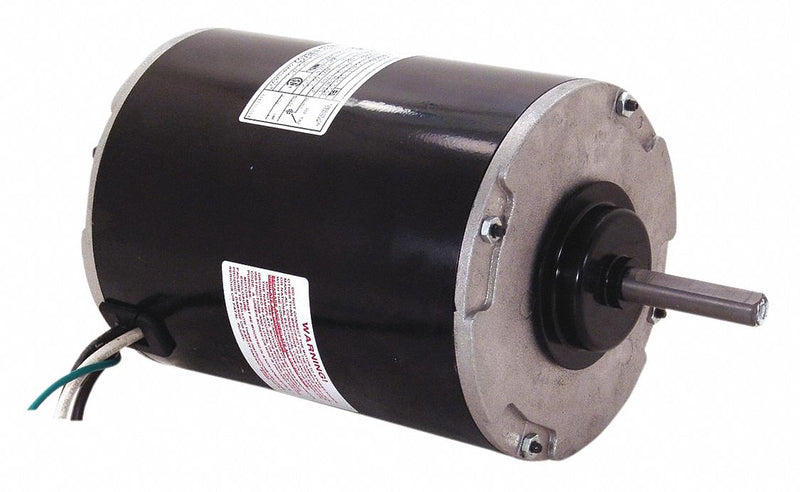

Item | Condenser Fan Motor |
Motor Design | Permanent Split Capacitor |
Phase | 1 |
HP | 3/4 |
No. of Speeds | 1 |
Voltage | 460 |
Motor Shaft Rotation | CCWLE |
Frame | 48Y |
Motor Enclosure Design | Open Air-Over |
Motor Mounting Type | Band |
Shaft Dia. | 1/2 in |
Shaft Length | 1 7/8 in |
Number of Shafts | 1 |
Motor Thermal Protection | Auto |
Nameplate RPM | 1075 |
Motor Application | OEM Replacement |
Full Load Amps | 2.8 |
Hz | 60/50 |
Ins. Class | B |
Max. Ambient Temp. | 60 Degrees C |
Motor Service Factor | 1 |
Motor Bearings | Ball |
Body Dia. | 5 5/8 in |
Length Less Shaft | 8 3/8 in |
Overall Length | 10 1/4 in |
Capacitor Required | 2MDV8 |
Application | Aaon |
Standards | CSA Certified (LR43341), UL Recognized (E46412) |
