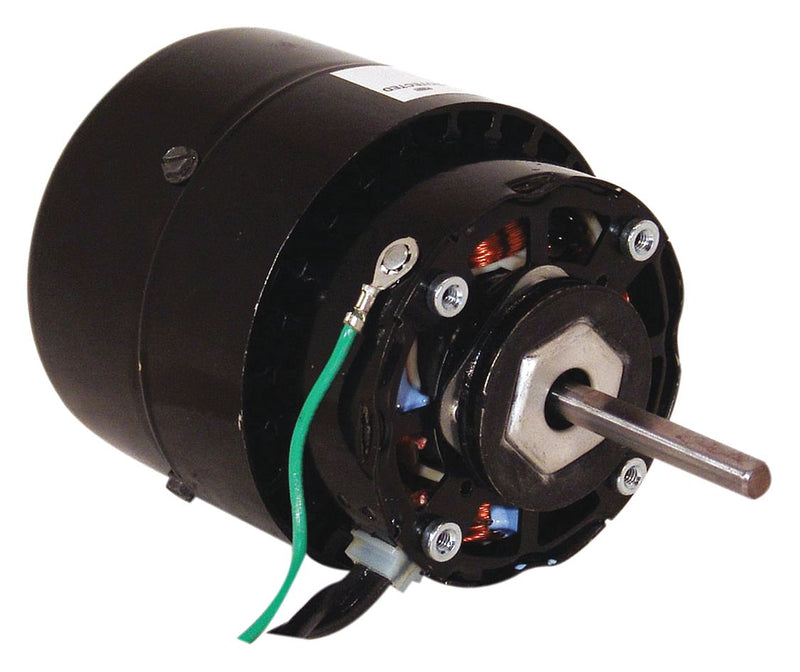

Unit Bearing Motor, Motor Application HVAC/R, Motor Sub Application Refrigerator/Freezer, Motor Type Shaded Pole, Enclosure Open Air-Over, HP 1/40, Nameplate RPM 1550, Frame Nonstandard, Voltage 115, Hz 60, Phase 1, Full Load Amps 1.2, Output Watts 18, Mounting Ring and Hole, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Sleeve, Max. Ambient Temp. 40 Degrees C, Rotation CCWSE, Length Less Shaft 4-15/16", Overall Length 6-3/16", Shaft Dia. 5/16", Shaft Length 1-1/4", Shaft Orientation Up, Down or Horizontal, Body Dia. 4", Ring Dia. 1-3/4", Ring to Ring Center 4-1/2", RPM Range 1501-1600, Includes 8/32 Mounting Studs
