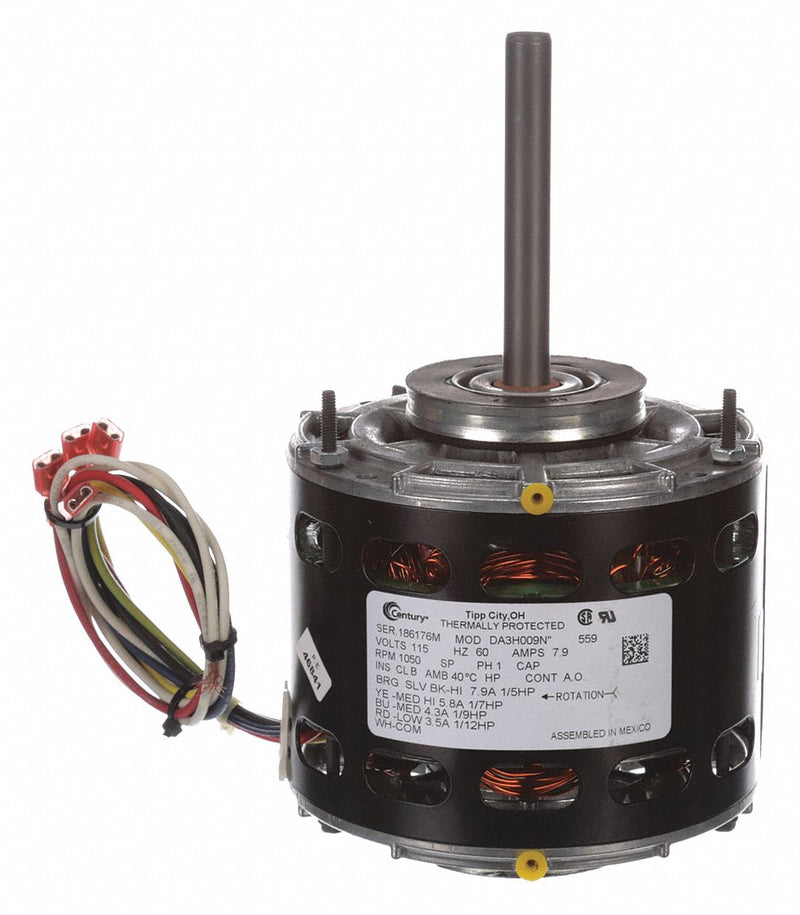

Century 1/5 HP Direct Drive Blower Motor, Shaded Pole, 1050 Nameplate RPM, 115 Voltage, Frame 42Y - 559

CenturySKU: C1560563
MPN : 559
Weight : 10.3 lb

filler

Price:
$208.94 $254.80

Availability : Usually Ships in 3-5 Business Days

This motor is suitable for unit heaters, condensers, furnace blowers, air circulators, fans, and a wide range of other shaft-mounted fan and blower equipment.

ItemDirect Drive Blower Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignShaded Pole
Motor Enclosure DesignOpen Air-Over
HP1/5
Nameplate RPM1050
Voltage115
Full Load Amps7.9
Hz60
Phase1
Frame42Y
Motor Service Factor1
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
No. of Speeds4
Motor Mounting TypeRing
Motor Mounting PositionAll Angle
Motor BearingsSleeve
Motor Thermal ProtectionAuto
Motor Shaft RotationCWSE
Body Dia.5 in
Length Less Shaft4 15/16 in
Shaft Dia.1/2 in
Shaft Length3 5/8 in
Motor Shaft DesignFlat
Capacitor RequiredNo
Resilient Ring Dia.2 1/2 in
Ring to Ring Center4 9/16 in
Stud Size#8-32
Bolt Circle Dia.4 5/8 in
StandardsCSA Certified, UL Recognized
ApplicationBlowers, Fans and Air Circulators
IncludesResilient Mounting Rings
Voltage Compatibility115, 120
